G301

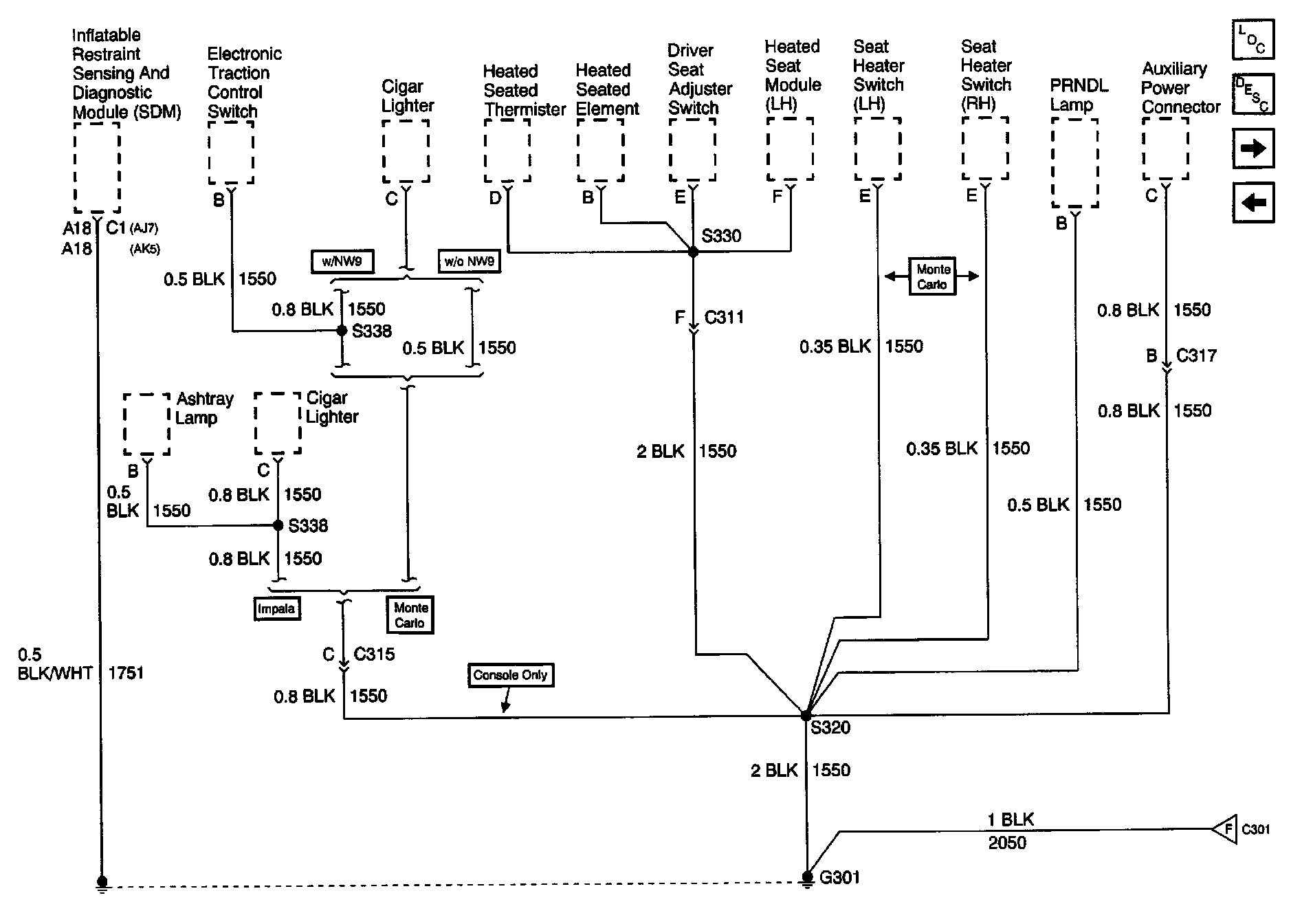

Ground Distribution Schematics: G301 (1 Of 2):



Ground Distribution Schematics: G301 (2 Of 2):
