G101

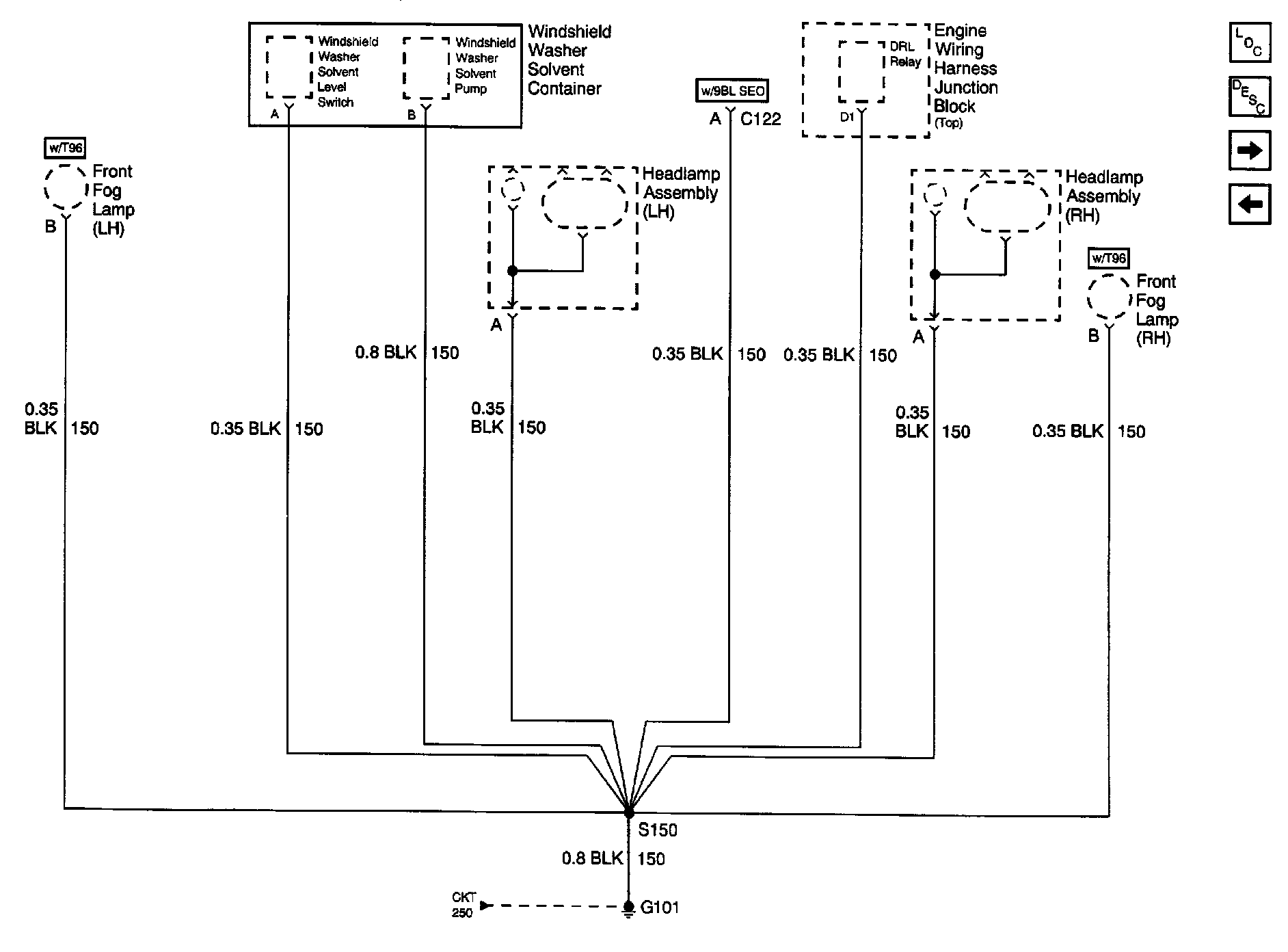

Ground Distribution Schematics: G101 (Part 1 Of 2):



Ground Distribution Schematics: G101 (Part 2 Of 2):
