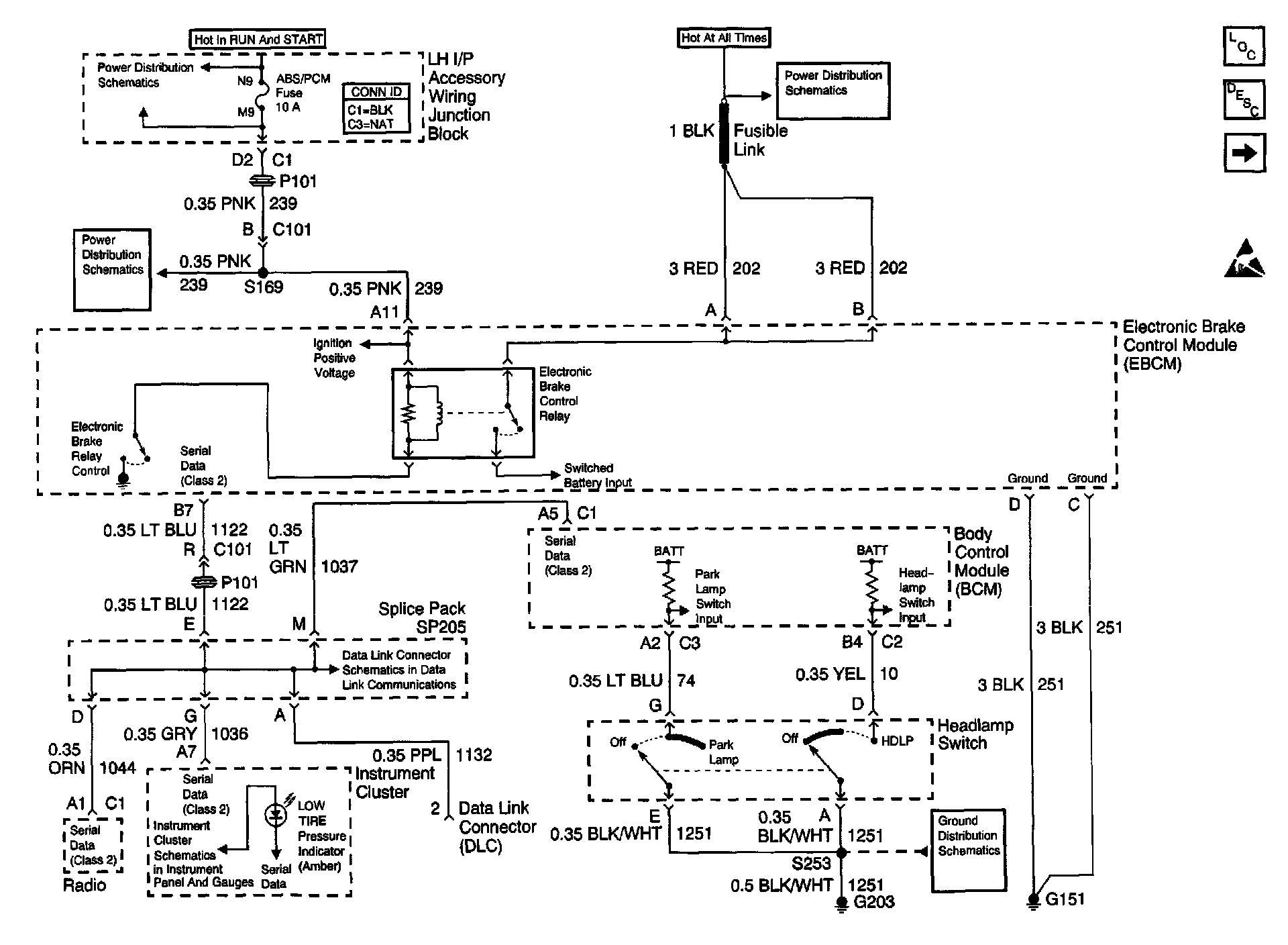

EBCM, Power, Ground And Instrument Cluster

Tire Pressure Monitoring System Schematics: EBCM, Power, Ground And Instrument Cluster:
