LH IP Accessory Wiring Junction Block, C1
LH IP Accessory Wiring Junction Block, C1

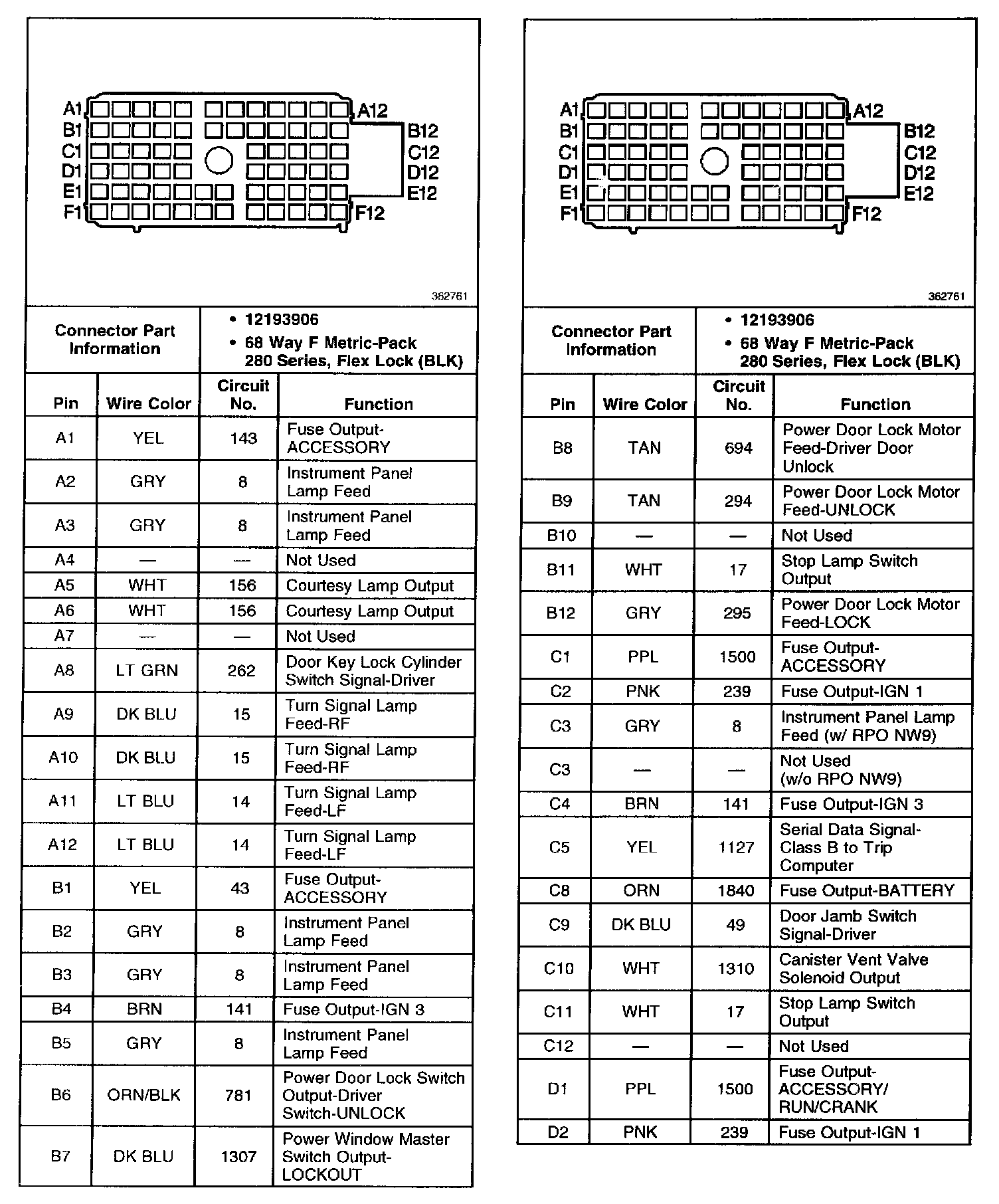

LH IP Accessory Wiring Junction Block, C1 (Part 1 Of 2):

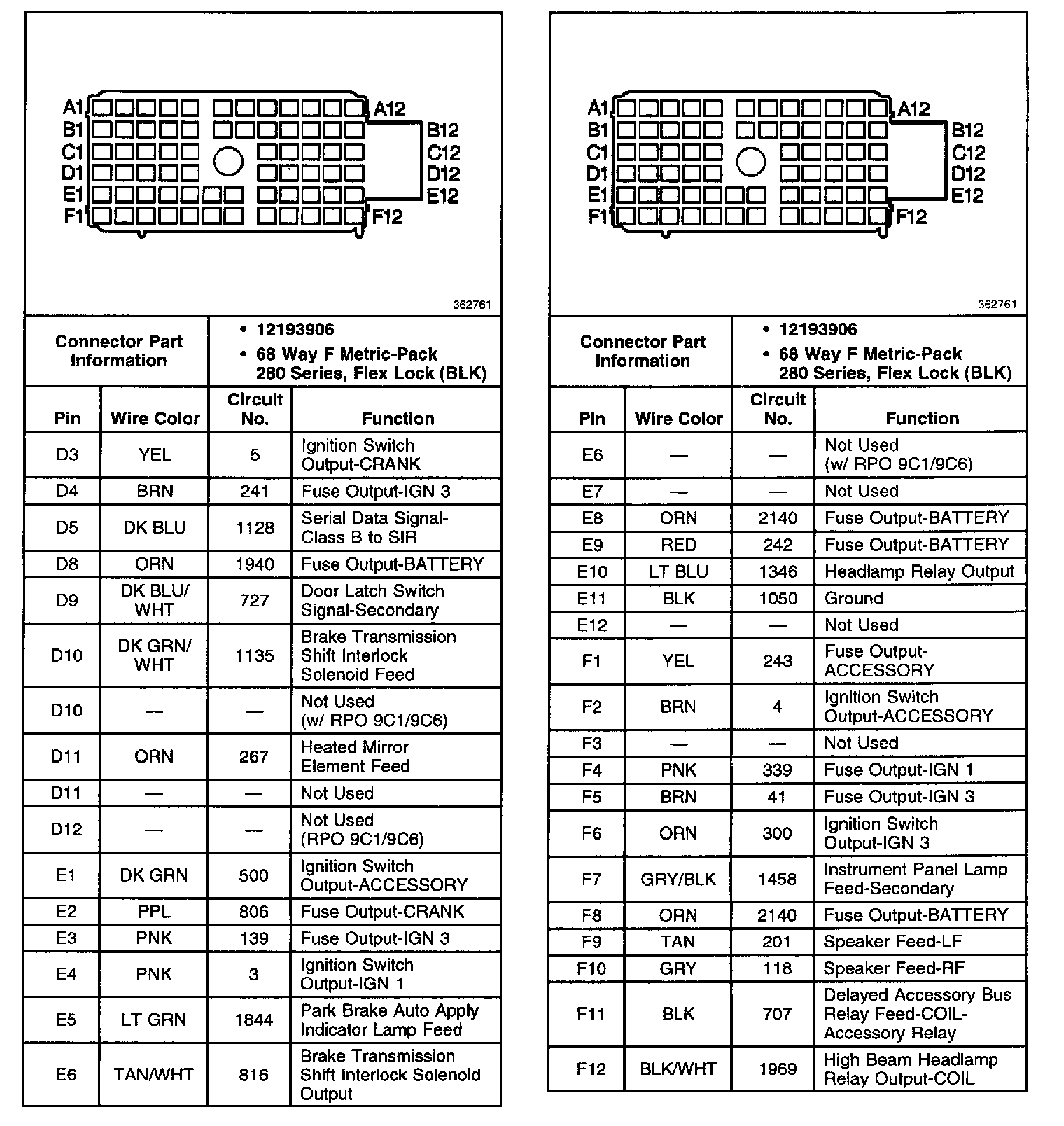

LH IP Accessory Wiring Junction Block, C1 (Part 2 Of 2):
