Home >> Chevrolet >> 2000 >> Impala V6-3.8L VIN K >> Repair and Diagnosis >> Locations >> Harness Locations >> Outside Tailing Edge of Rear Compartment

Outside Tailing Edge of Rear Compartment

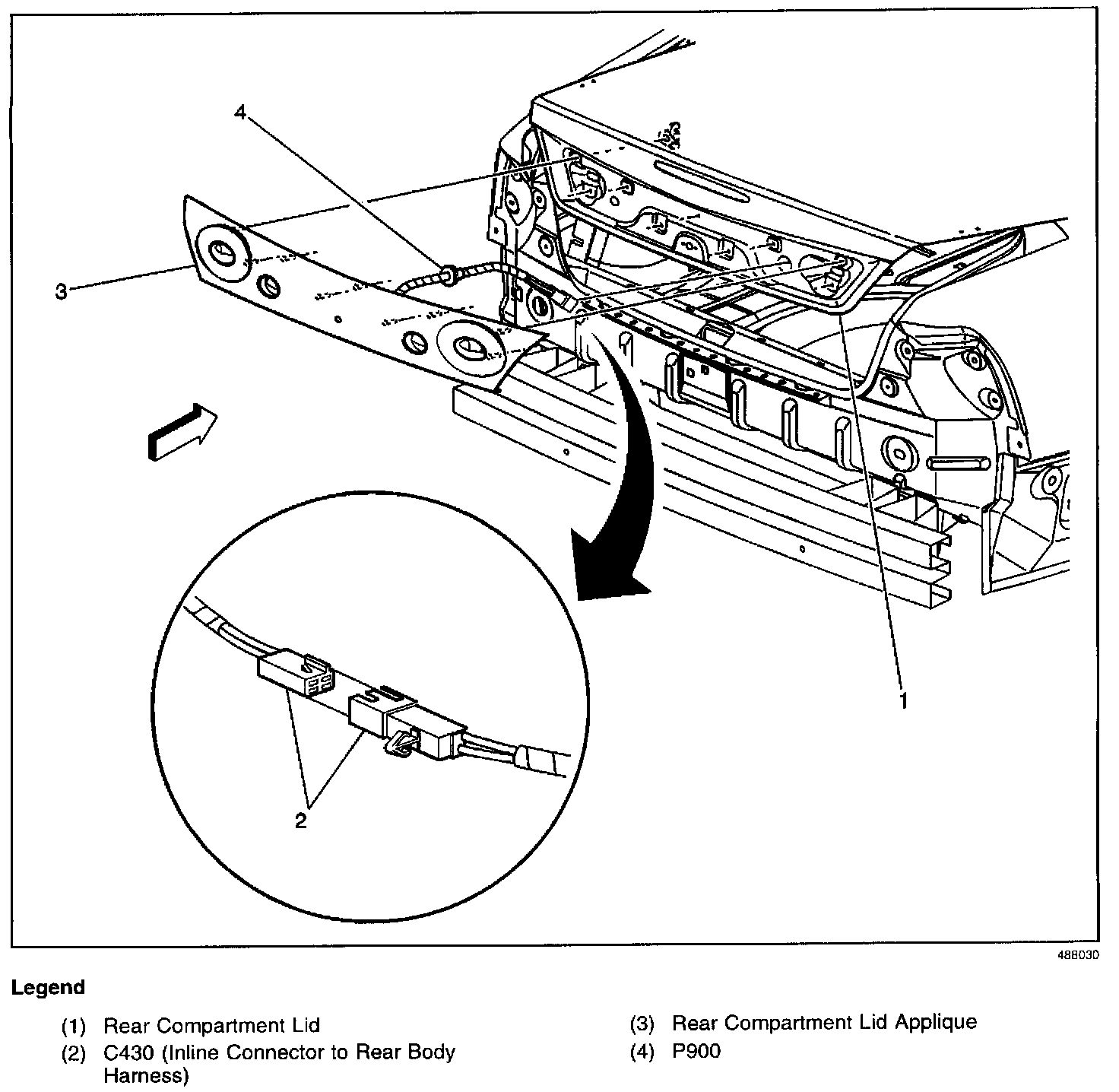

Harness Routing Views (Outside Tailing Edge Of Rear Compartment):
