Left Side of Rear Compartment (4-Door)

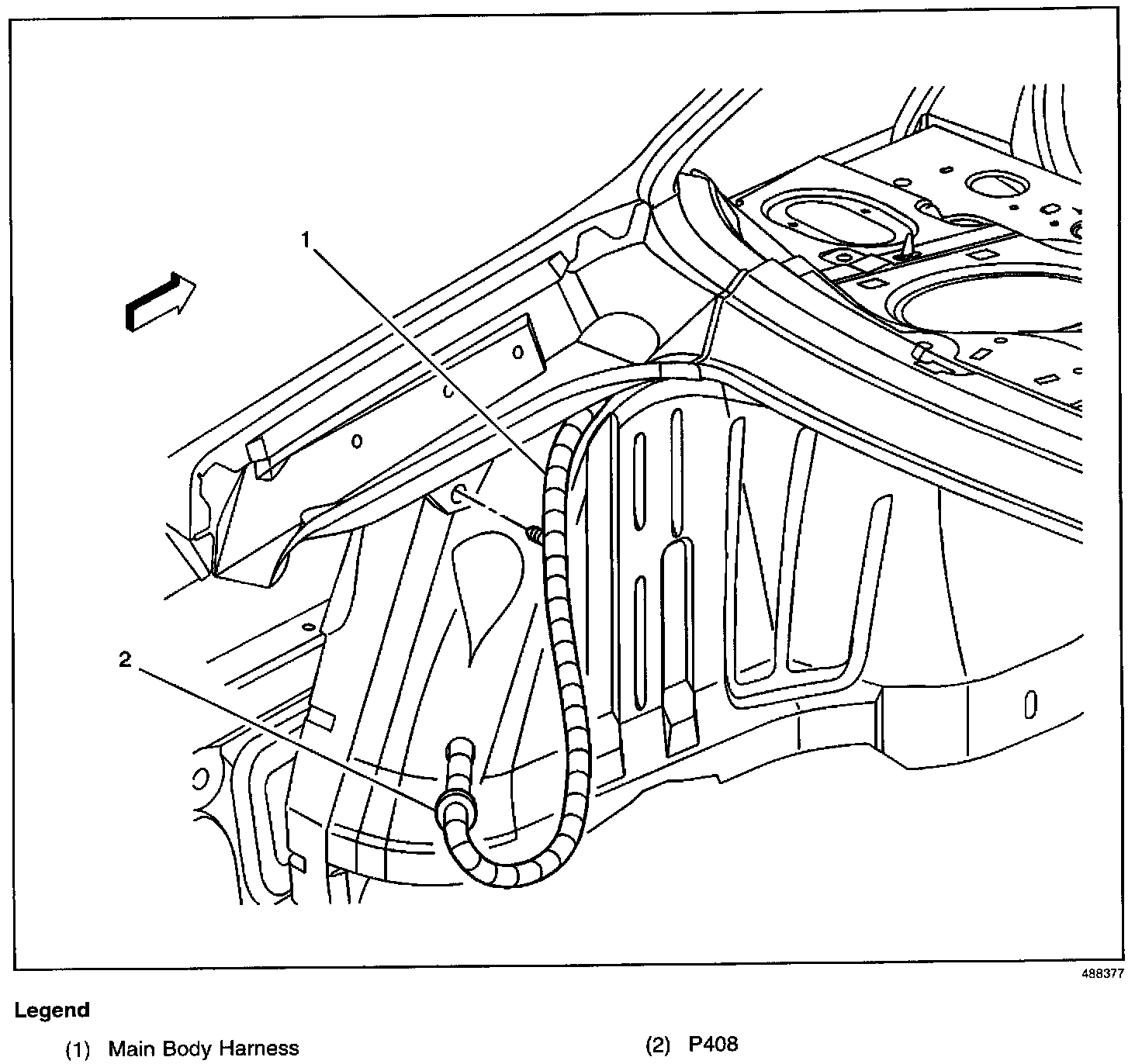

Harness Routing Views (Left Side Of Rear Compartment (4-Door)):
