Home >> Chevrolet >> 2000 >> Impala V6-3.8L VIN K >> Repair and Diagnosis >> Locations >> Connector Locations >> Connectors By Component Name >> Heater & A/C Control Panel Connector, C1 and C2

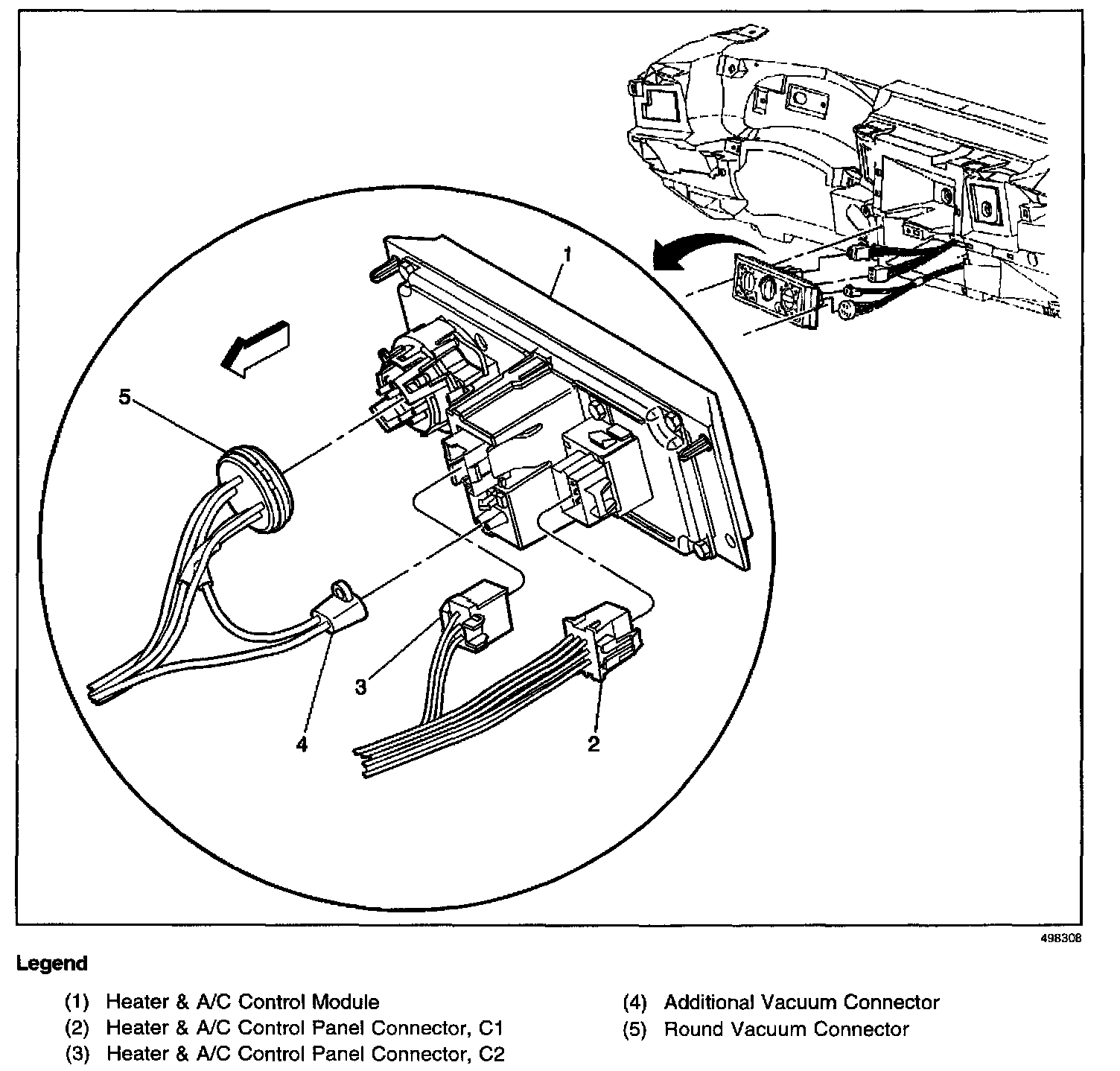

Heater & A/C Control Panel Connector, C1 and C2

Locations View:
