Home >> Chevrolet >> 2000 >> Impala V6-3.8L VIN K >> Repair and Diagnosis >> Lighting and Horns >> Horn >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Horns Inoperative

Horns Inoperative

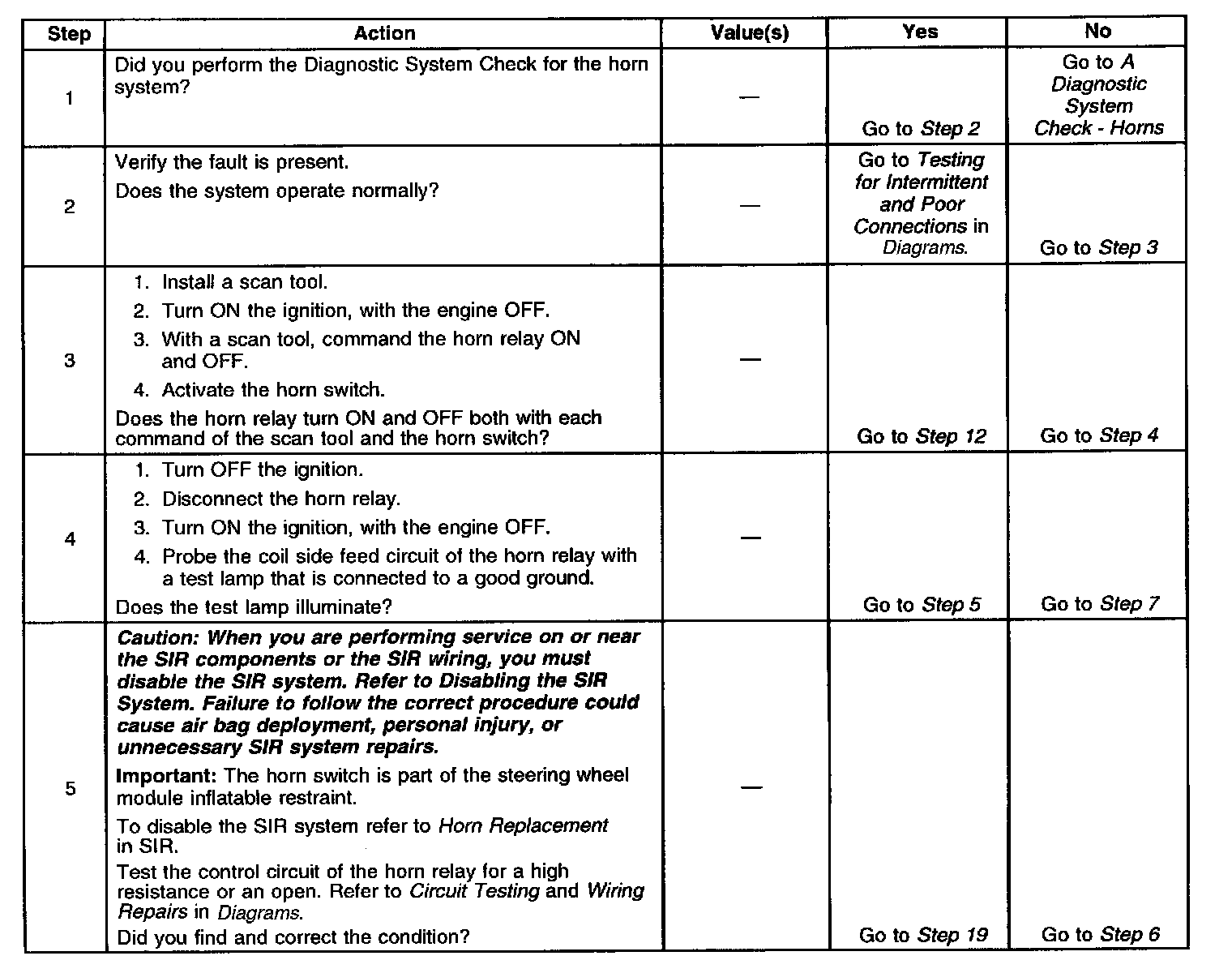

Diagnostic Chart (Part 1 Of 3):

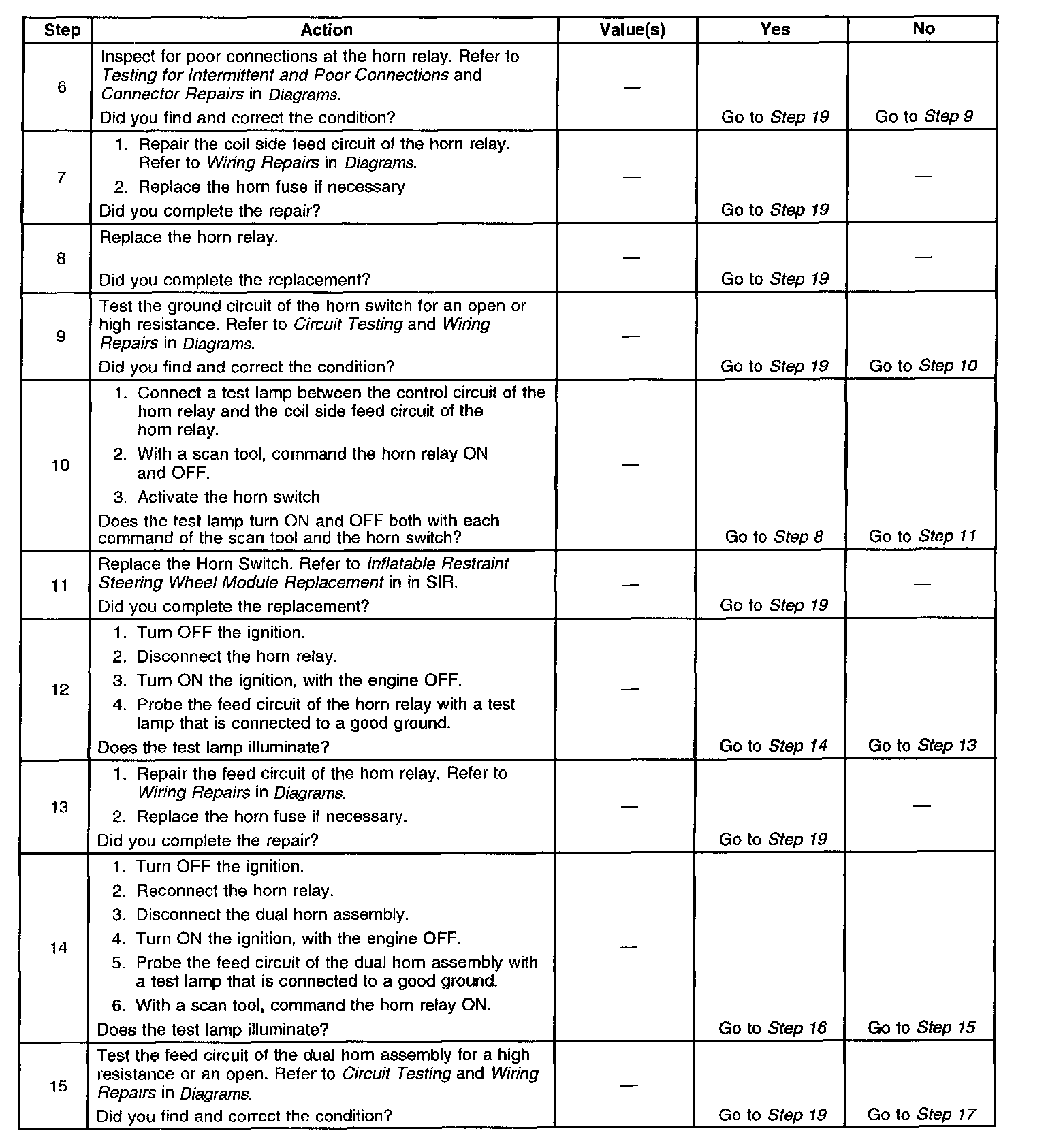

Diagnostic Chart (Part 2 Of 3):

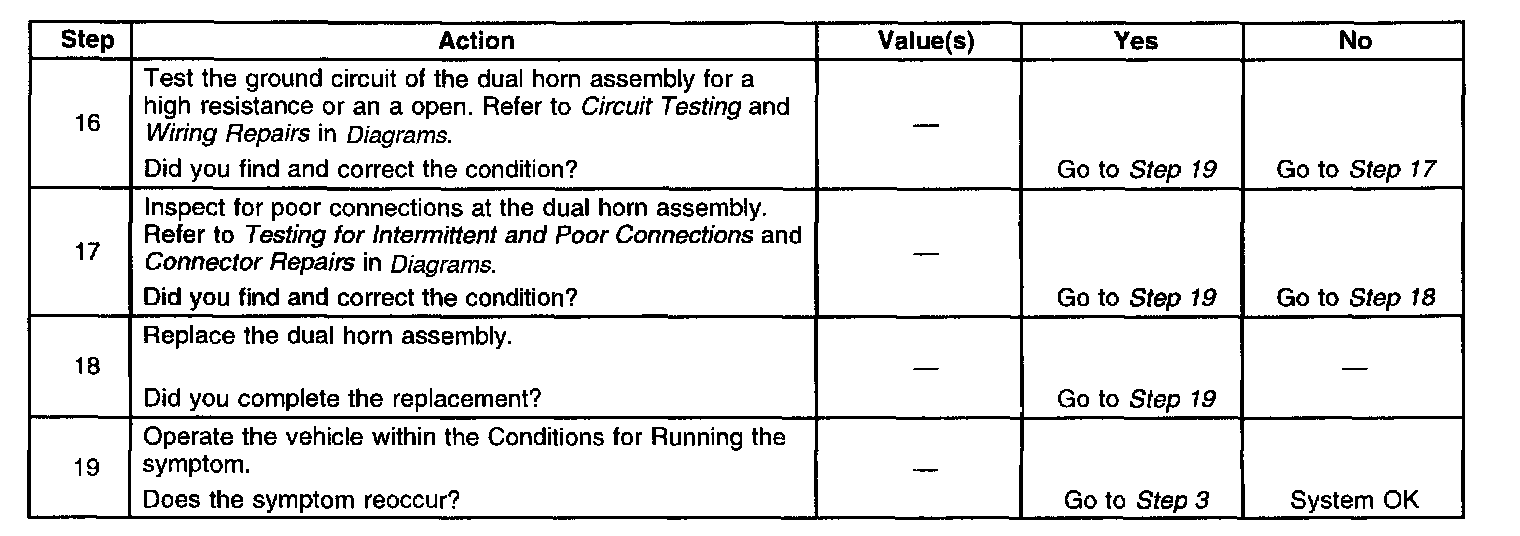

Diagnostic Chart (Part 3 Of 3):
