Steering Wheel Control Switches Lamp

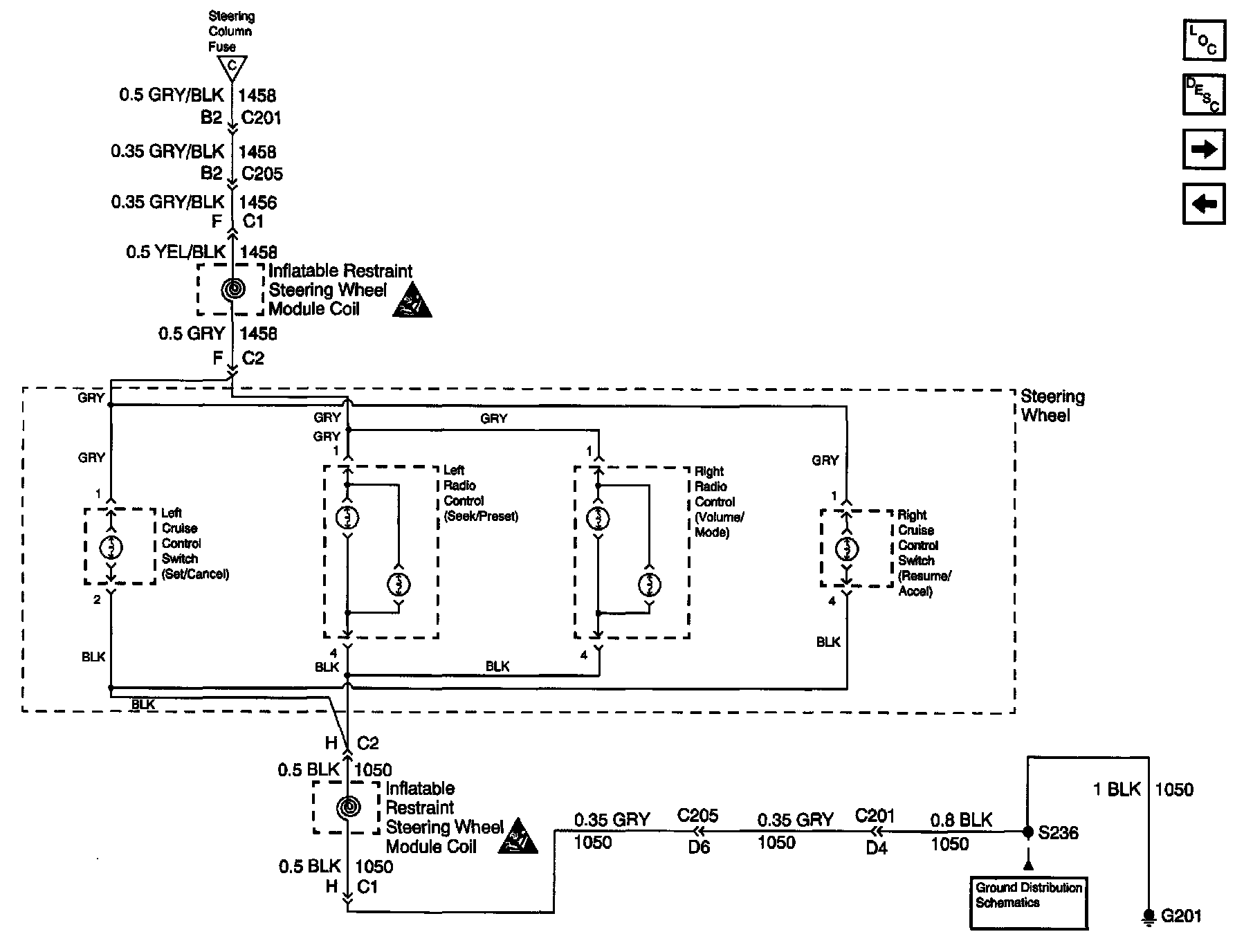

Interior Lights Dimming Schematics: Steering Wheel Control Switchs Lamp:
