Home >> Chevrolet >> 2000 >> Impala V6-3.8L VIN K >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Interior Lights >> Door Lock Switches

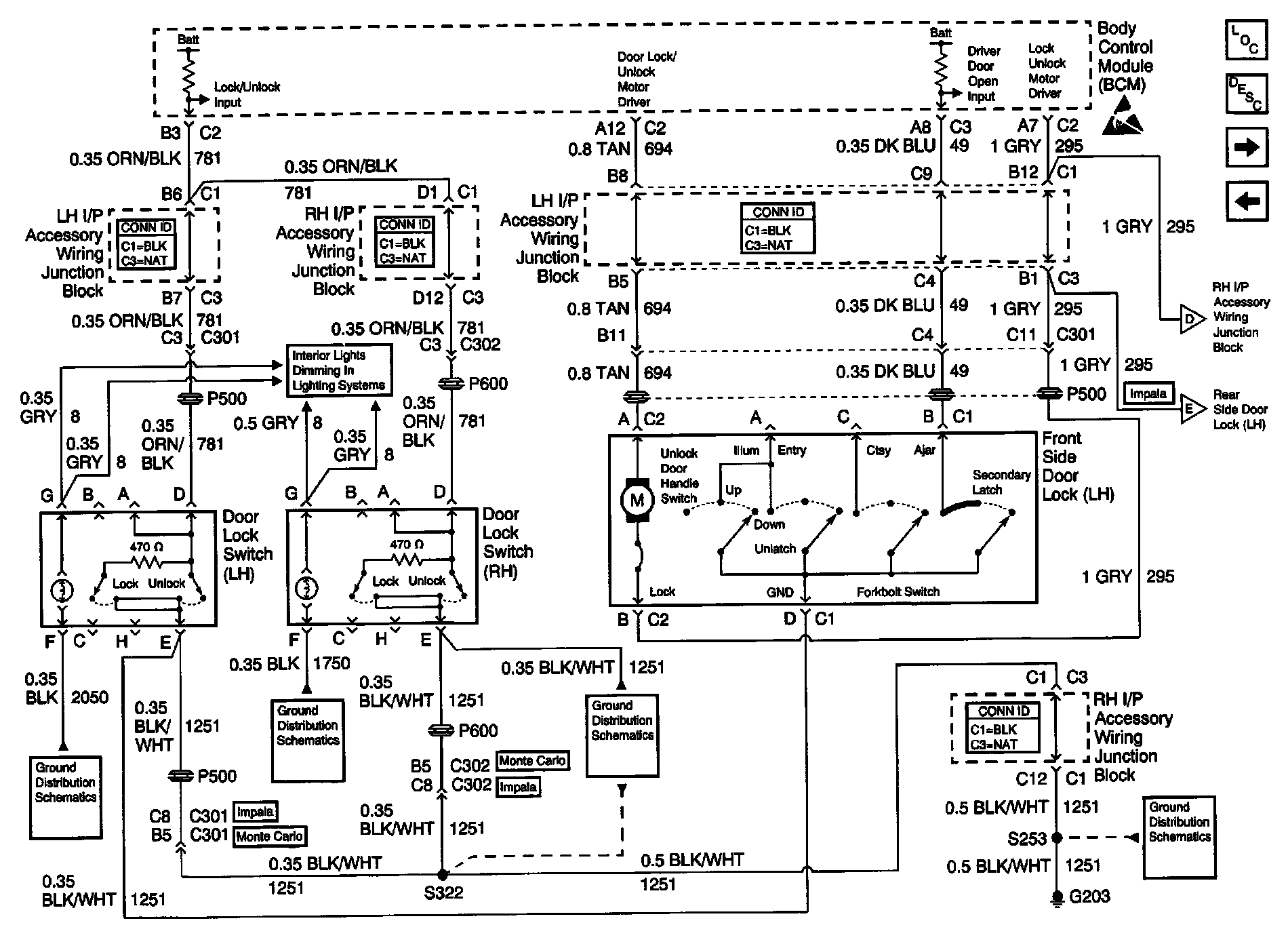

Door Lock Switches

Interior Lights Schematics: Door Lock Switches:
