Home >> Chevrolet >> 2000 >> Impala V6-3.8L VIN K >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Exterior Lights >> Spot Lamps-9C1/9C6

Spot Lamps-9C1/9C6

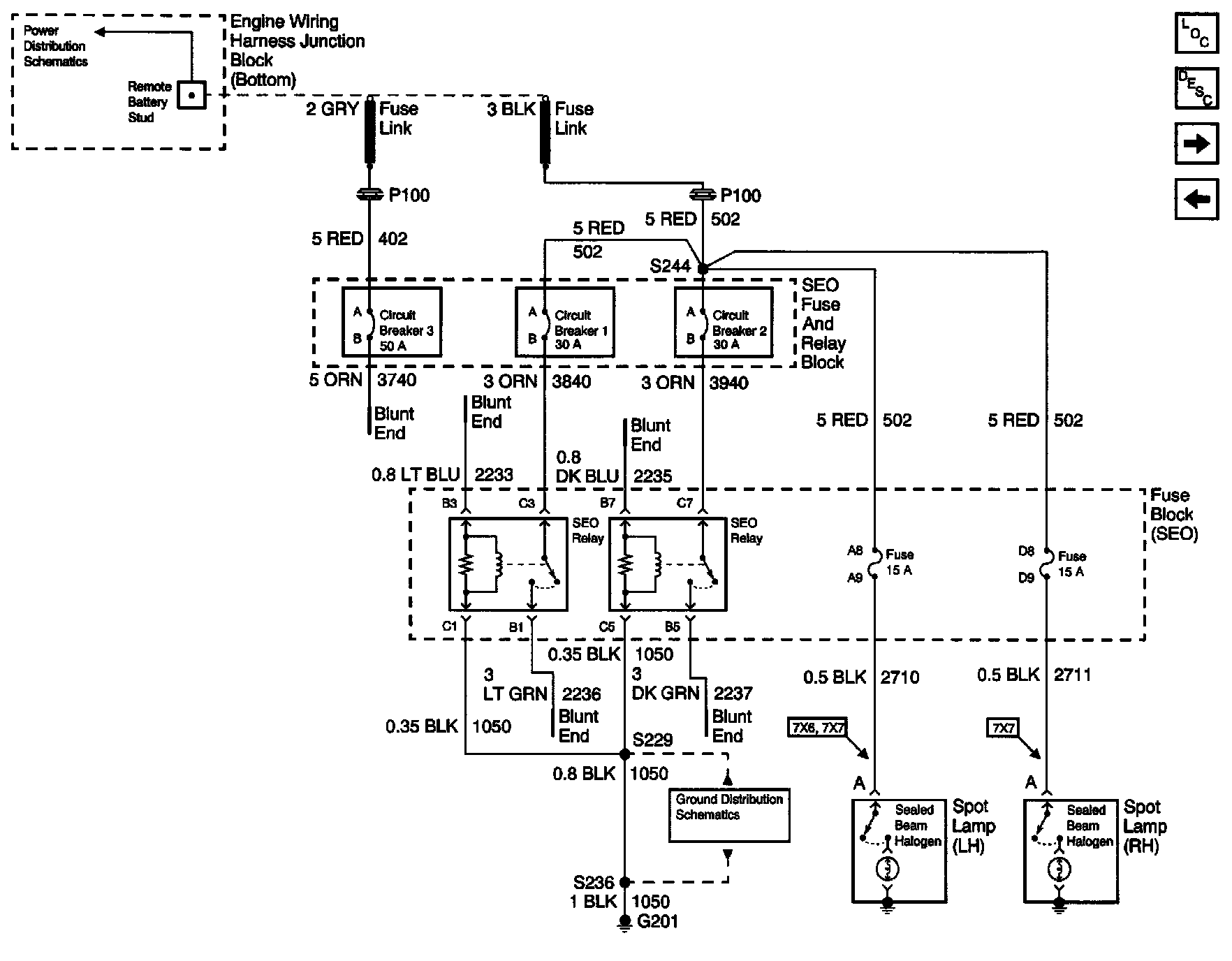

Exterior Lights Schematics: Spot Lamps-9C1/9C6:
