Home >> Chevrolet >> 2000 >> Impala V6-3.8L VIN K >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Locations >> Connector Locations >> Instrument Panel Block Connector, C3, LH

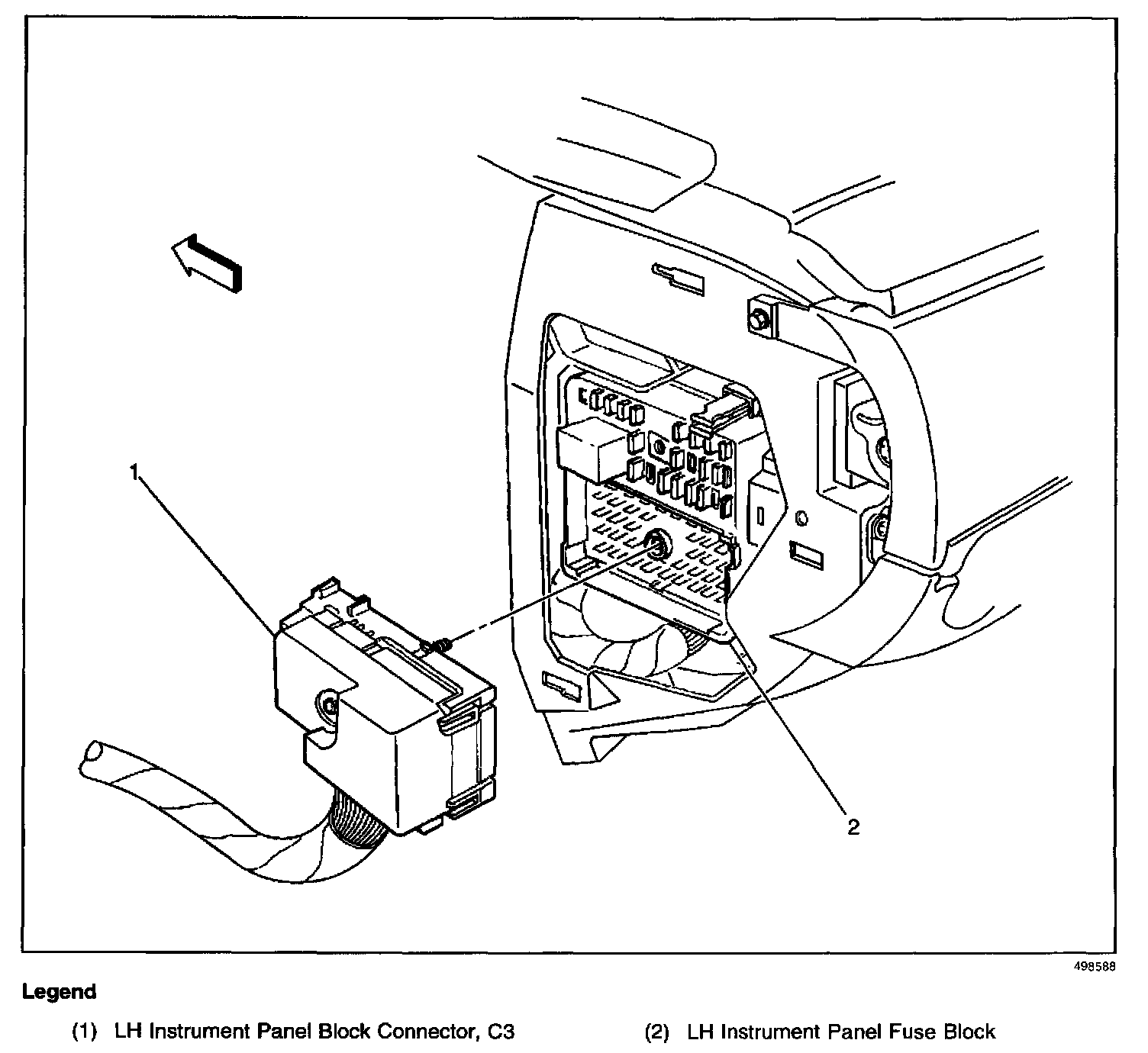

Instrument Panel Block Connector, C3, LH

Locations View:
