LEMON Manuals
: Even more car manuals for everyone
Home
>>
Chevrolet
>>
2000
>>
Impala V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster / Carrier
>>
Diagrams
>>

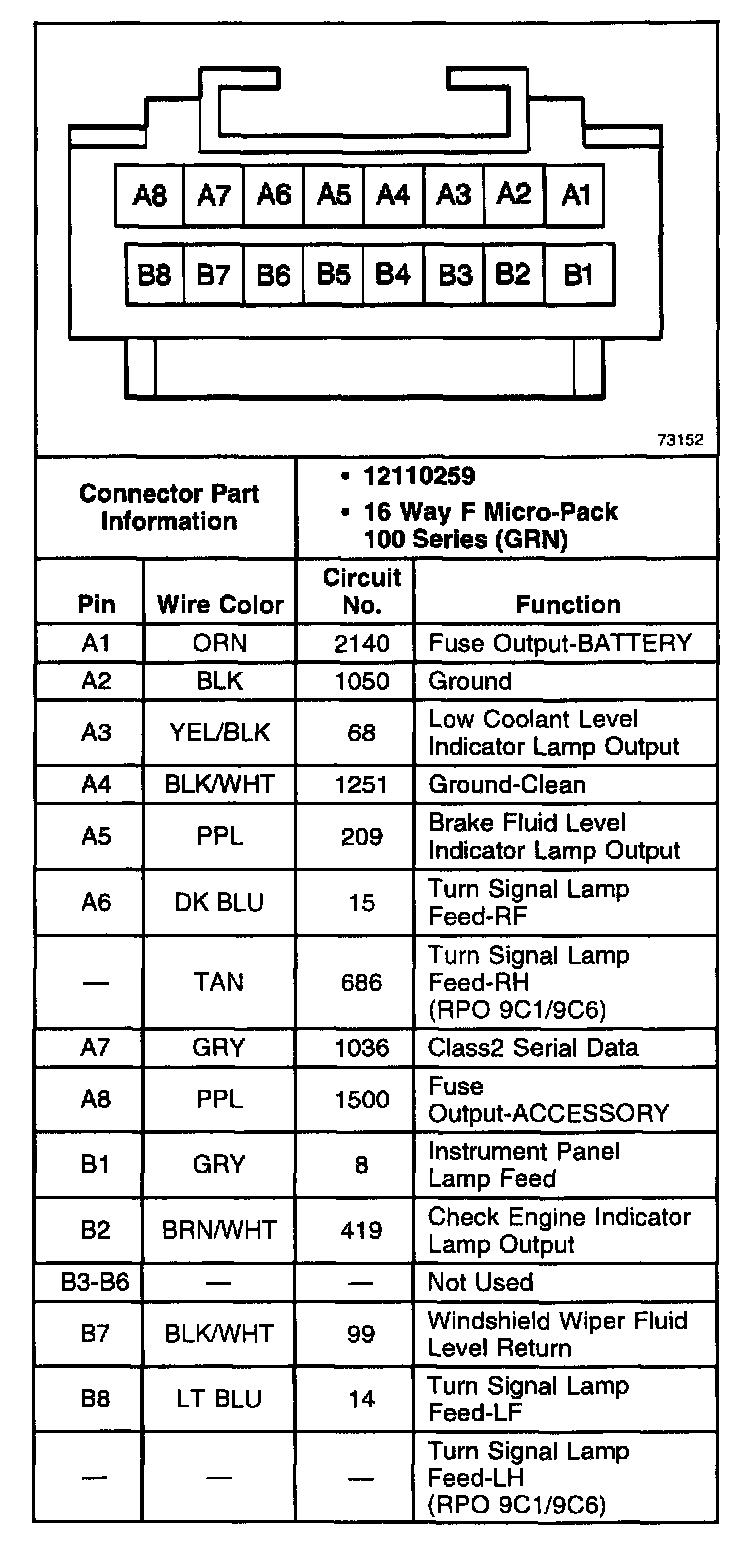

Connector Views
Connector Views
Instrument Cluster:
