Home >> Chevrolet >> 2000 >> Impala V6-3.8L VIN K >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Diagrams >> Electrical Diagrams >> Instrument Cluster Analog Schematics >> Driver Information Centre

Driver Information Centre

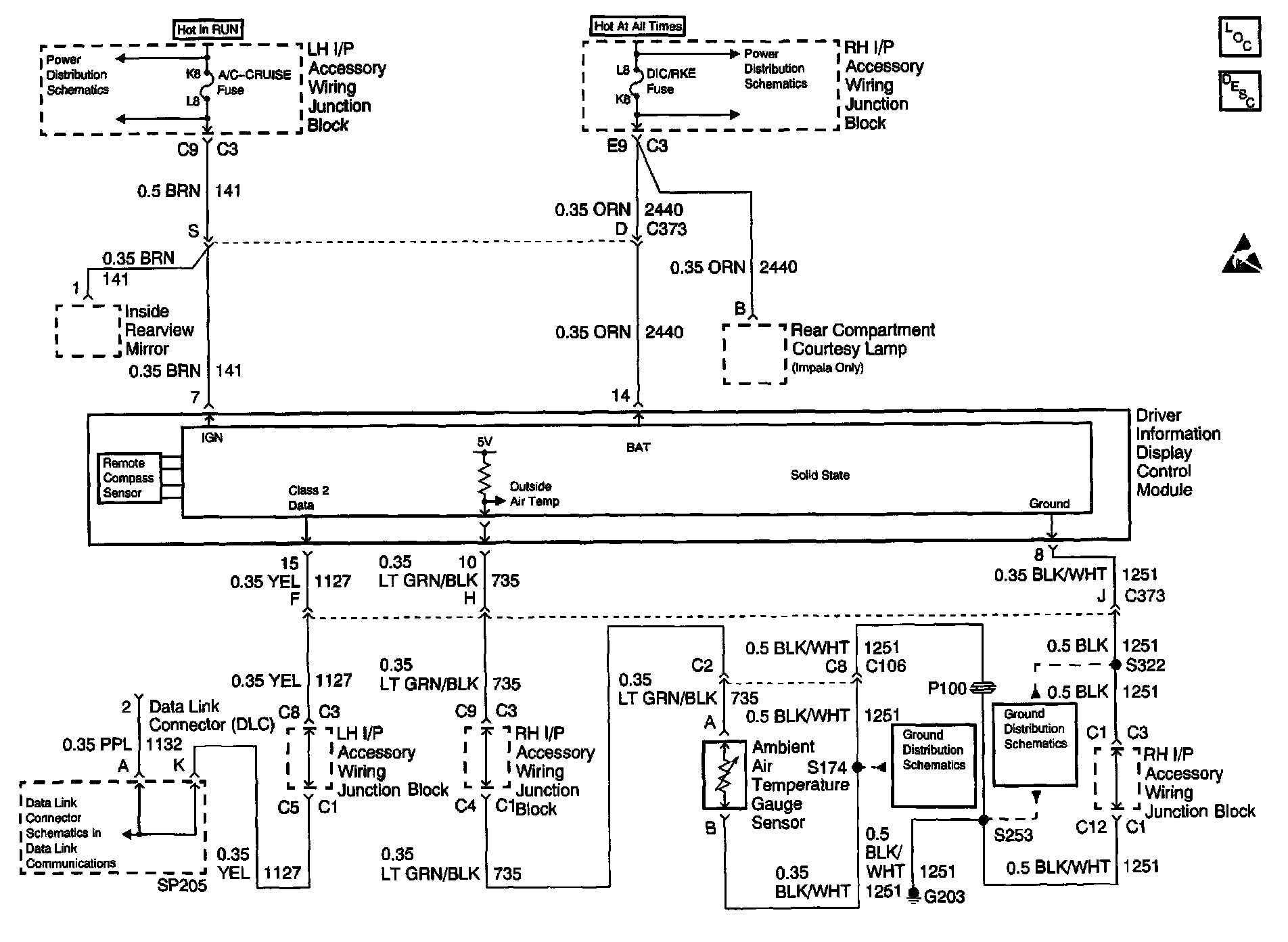

Driver Information System Schematics: Driver Information Center:
