Audible Warning Schematics
>>
Seatbelt SW, PCM, EBCM, IPC, Radio and SDM.
Seatbelt SW, PCM, EBCM, IPC, Radio and SDM.

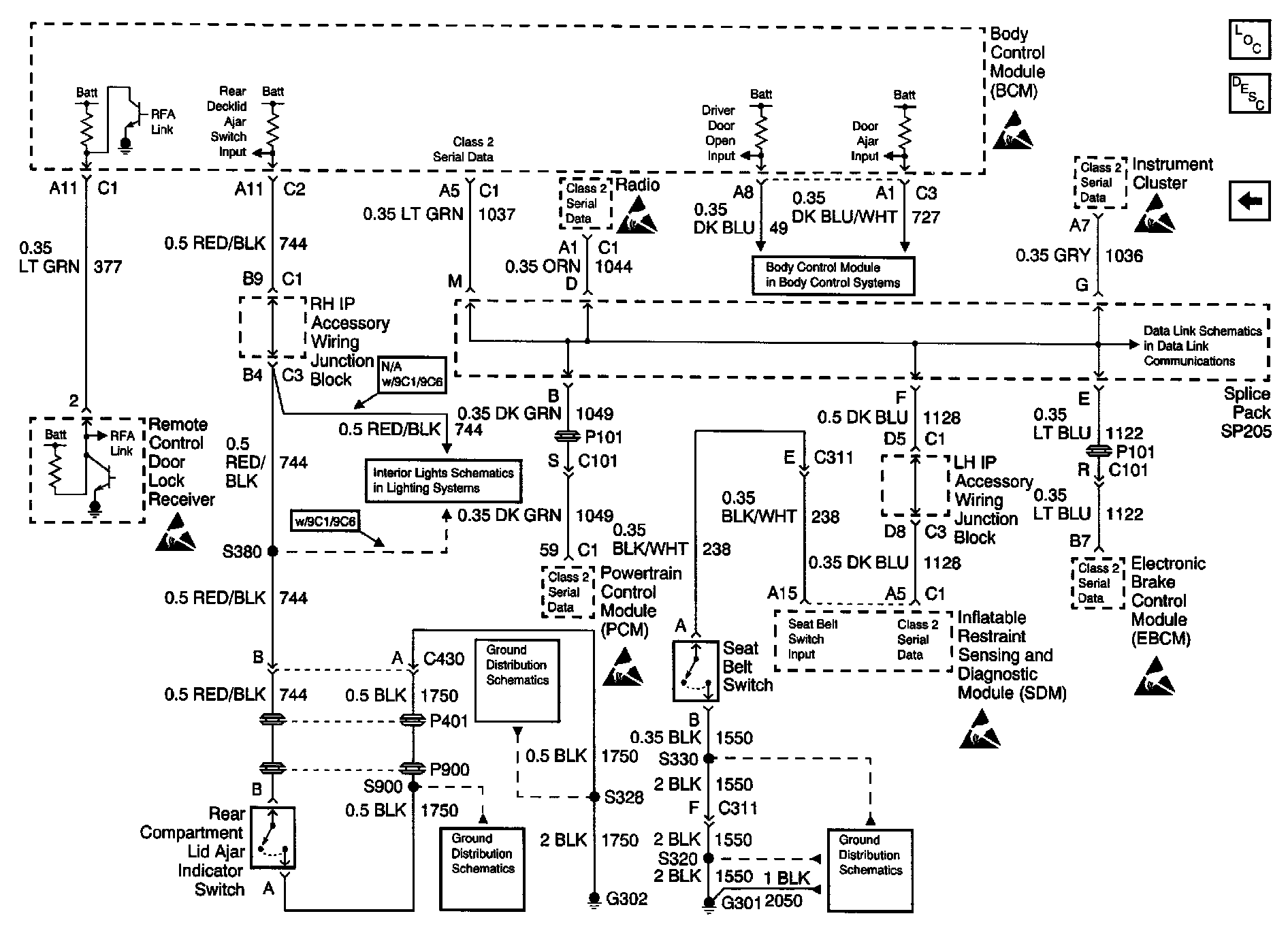

Audible Warnings Schematics: BCM, RCDLR, Seatbelt Sw, Rear Compartment Lid Ajar Indicator Sw, Seatbelt Sw, PCM, EBCM, IPC, Radio And SDM.:
