Home >> Chevrolet >> 2000 >> Impala V6-3.8L VIN K >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Temperature Control Inoperative

Temperature Control Inoperative

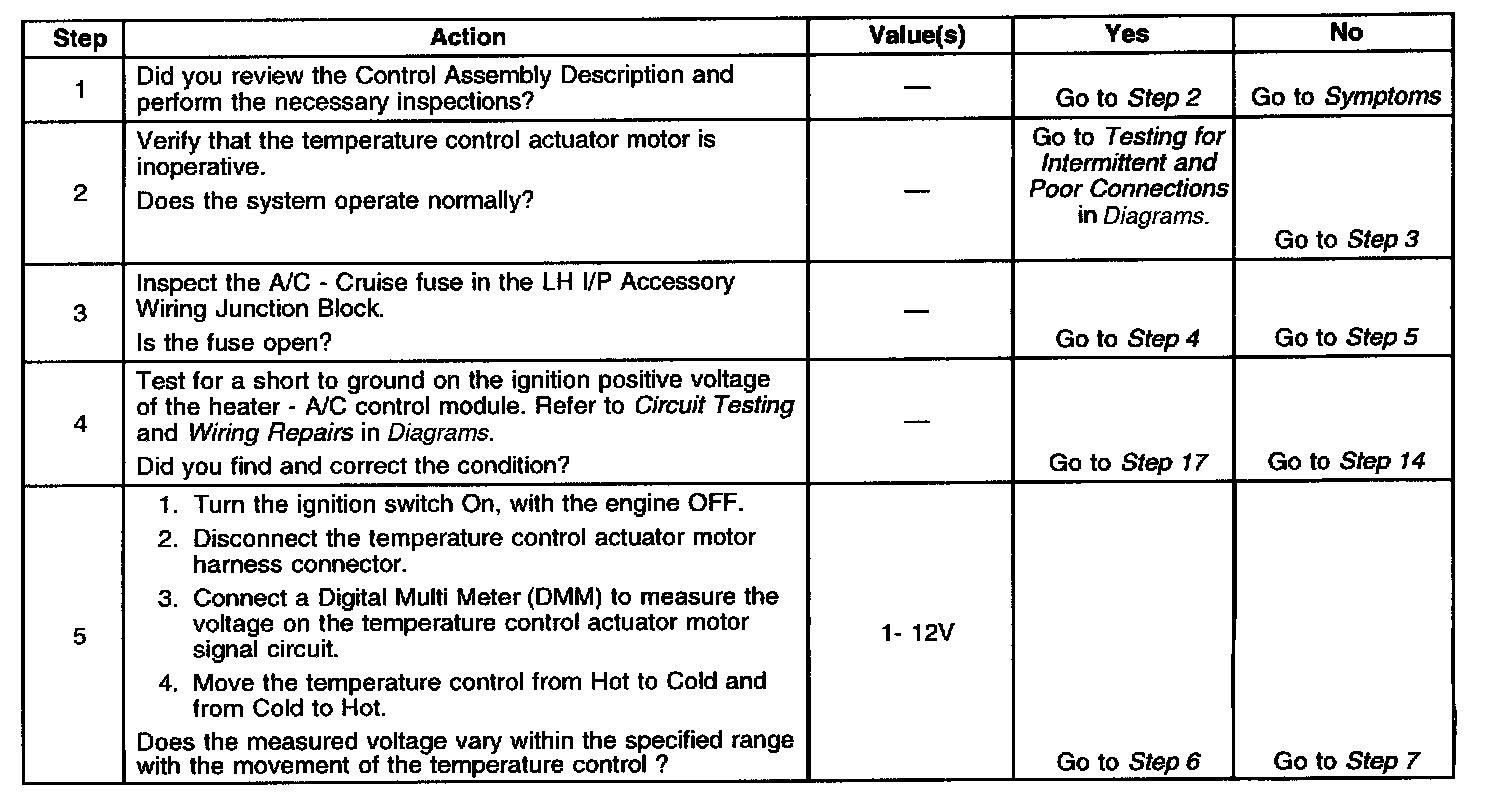

Steps 1-5:

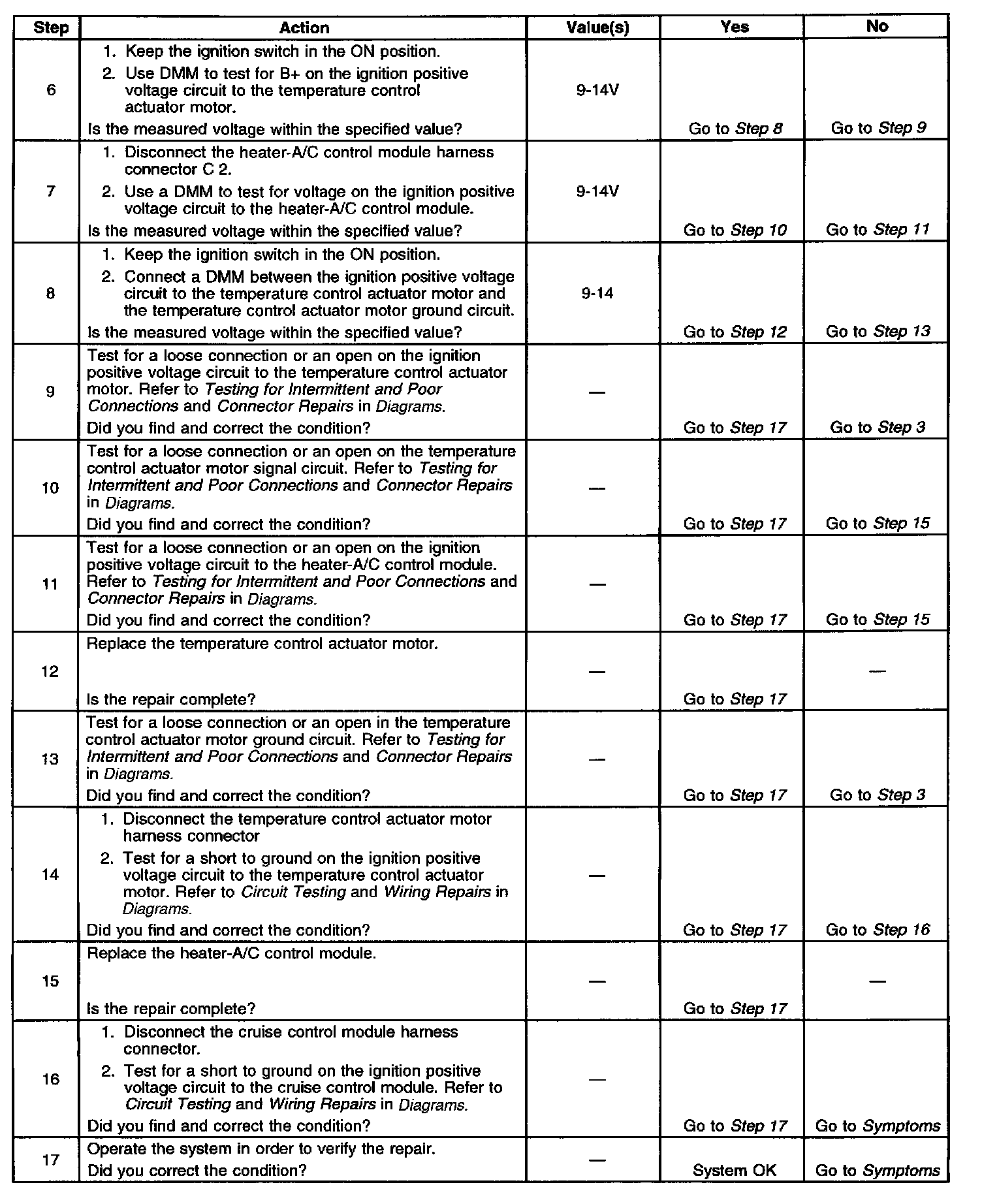

Steps 6-17:
