Blower Motor Always On

TEST DESCRIPTION

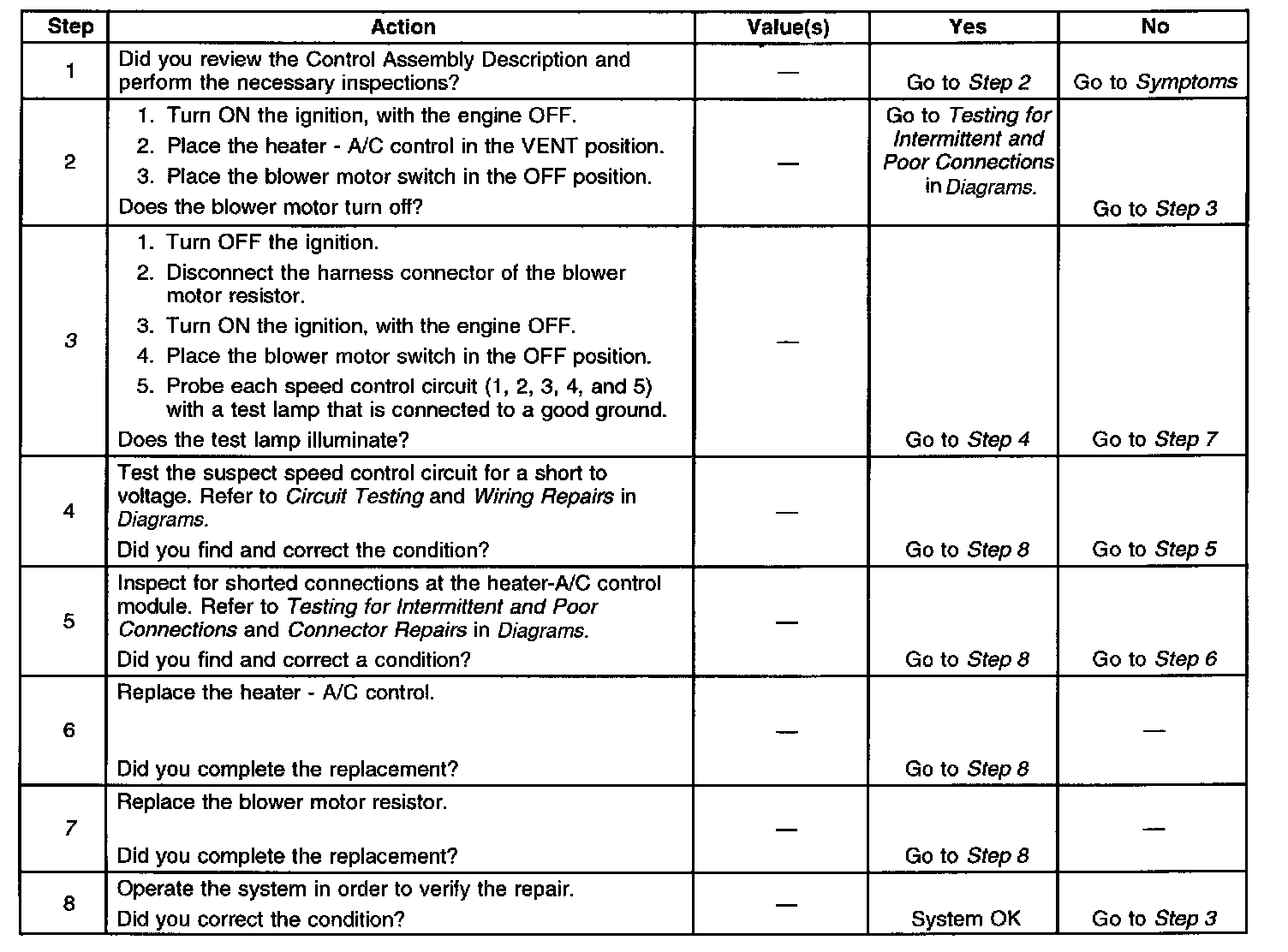

Steps 1-8:

3. This step tests for a short to voltage in one of the speed control circuits.
7. If no fault is found in Step 3 it is assumed that the blower motor relay is stuck closed and the blower motor will operate in high speed all the time.
