Compressor Pressure Relief Valve Removal

TOOLS REQUIRED
J 41790 Compressor Holding Fixture




1. Install the compressor into the J 41790.

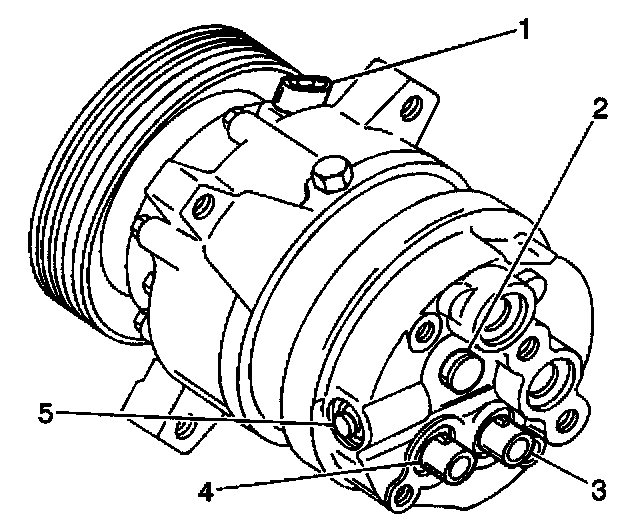

2. Remove the pressure relief valve (2) from the rear head of the compressor.
