PWR & GRDs - RPO C60

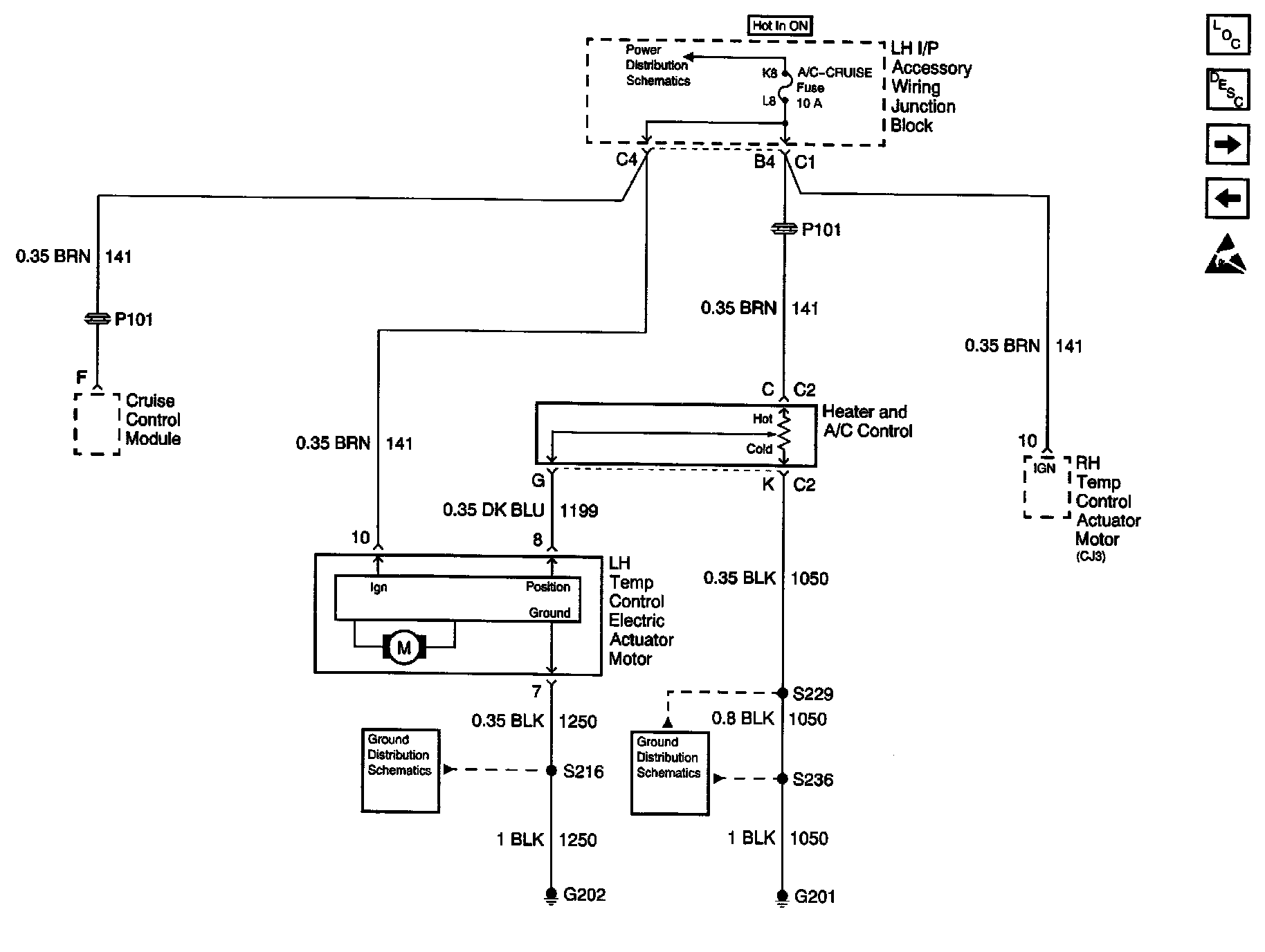

HVAC Air Delivery/Temperature Control Schematics: Power And Grounds:
RPO C60: For a Description of RPO Code(s) shown in this article refer to the RPO Code List found at Vehicle/Application and ID RPO Codes
RPO C60: For a Description of RPO Code(s) shown in this article refer to the RPO Code List found at Vehicle/Application and ID RPO Codes
