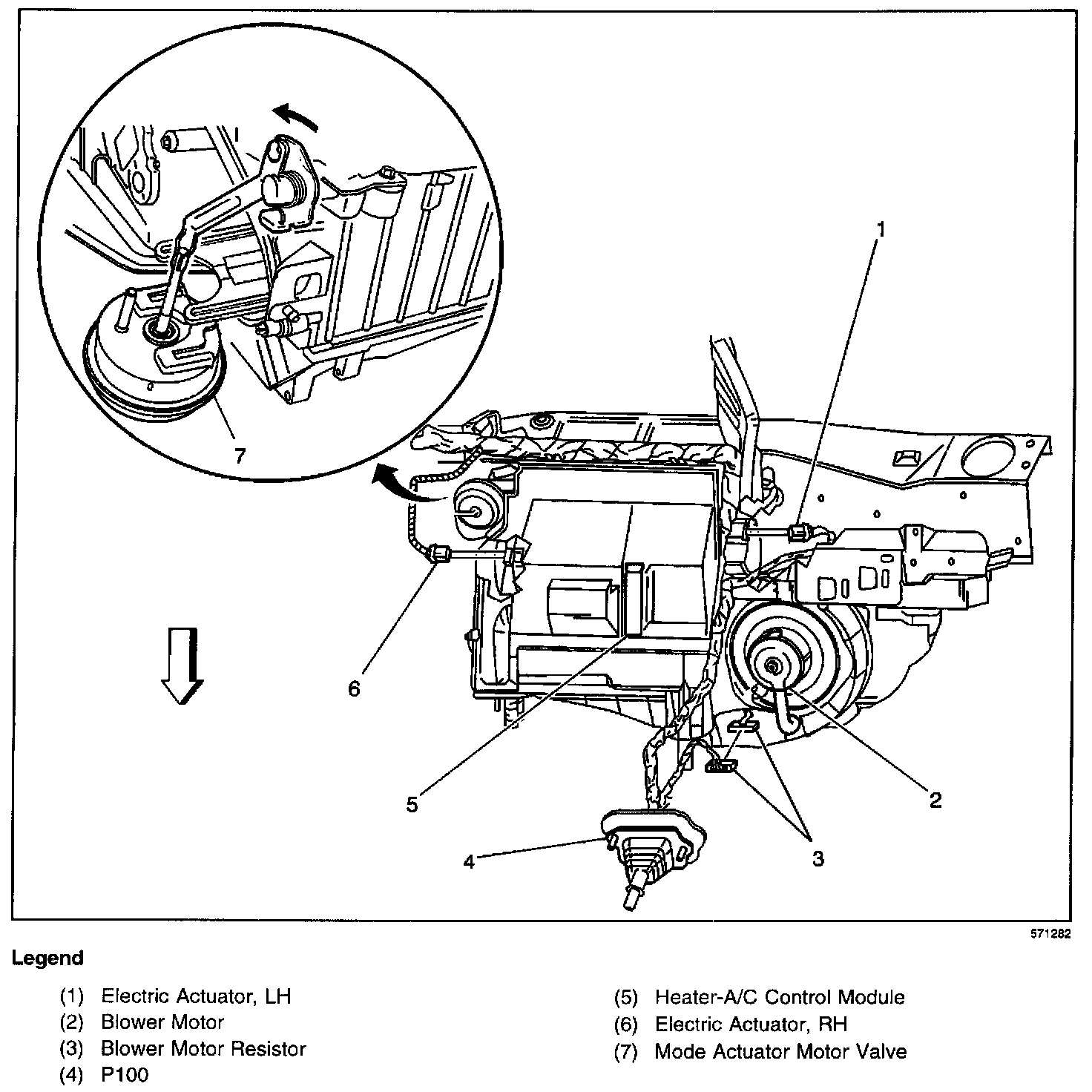

Blower Motor: Locations

Locations View:

Behind the instrument panel, on the right side of the HVAC module.

RPO WX7,6J3,6J4,6J6: For a Description of RPO Code(s) shown in this article refer to the RPO Code List found at Vehicle/Application and ID RPO Codes
