95. Crankshaft Balancer Installation

- Tools Required
- J 37096 Flywheel Holding Tool
- J 36660-A Torque Angle Meter





1. Lubricate the seal surface of the crankshaft balancer with engine oil.

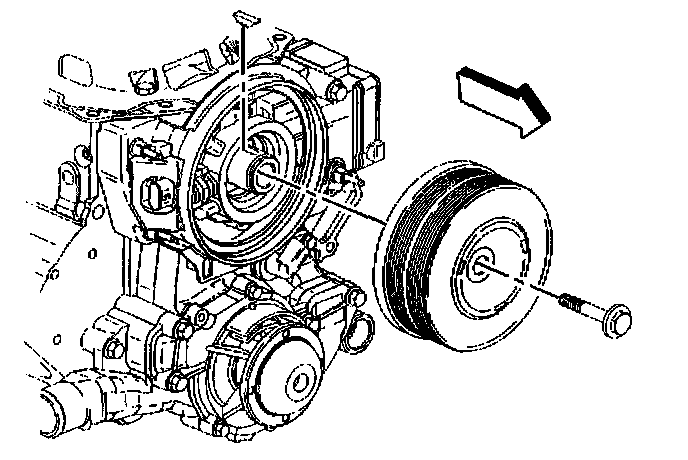

2. Install the crankshaft balancer.
3. Use J 37096 to hold the flywheel.

Notice:
- Refer to Permanently Stretching Bolt Notice in Service Precautions.
- Refer to Fastener Notice in Service Precautions.





4. Install the crankshaft balancer bolt.
Tighten the crankshaft balancer bolt to 150 Nm (111 ft. lbs.). Use J 36660-A to tighten the crankshaft balancer bolt an additional 76 degrees.
