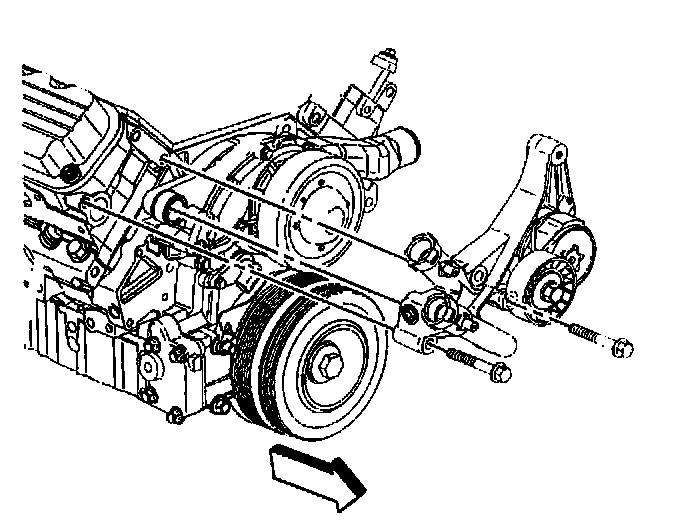

93. Drive Belt Tensioner Bracket Installation

1. Install the drive belt tensioner bracket.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the drive belt tensioner bracket bolts.
Tighten the drive belt tensioner bolts to 50 Nm (37 ft. lbs.).
