11. Exhaust Manifold Removal - Left

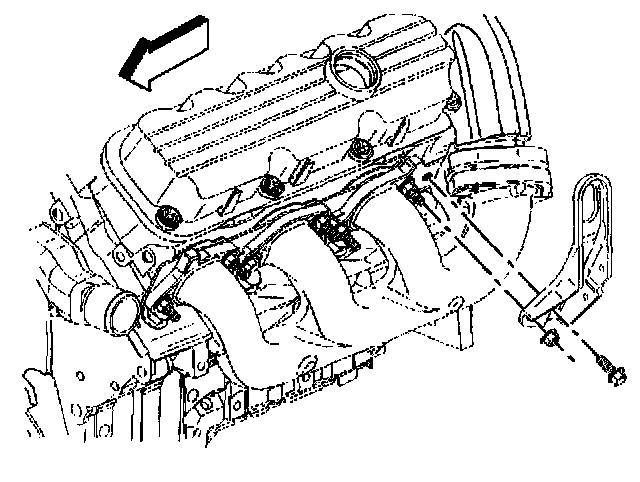

1. Remove the exhaust manifold heat shield nuts.
2. Remove the exhaust manifold heat shield.





3. Remove the left engine lift hook nut and bolt.
4. Remove the left engine lift hook.

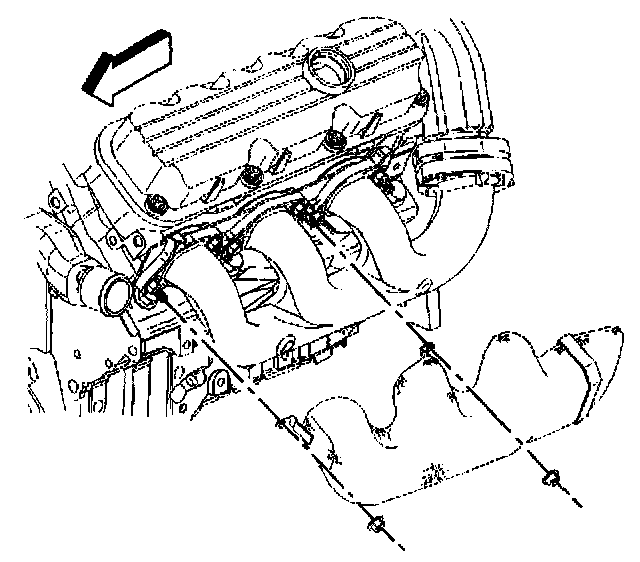

5. Remove the left side spark plugs.





6. Remove the exhaust manifold bolt and studs.
7. Remove the exhaust manifold.
8. Remove the exhaust manifold gasket.
