10. Exhaust Crossover Removal

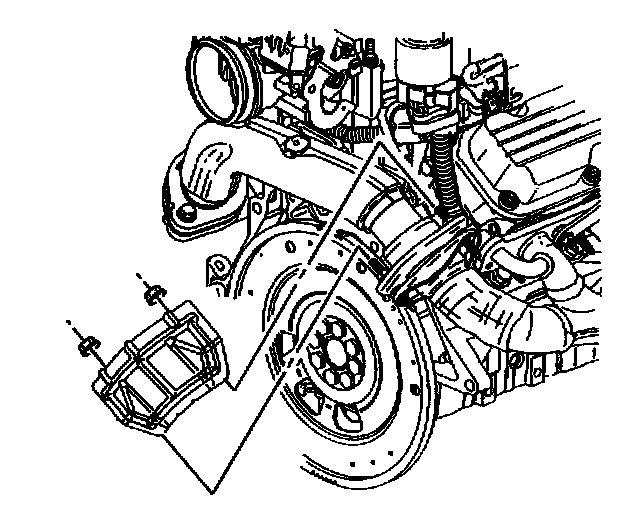

1. Remove the exhaust crossover pipe heat shield nuts.
2. Remove the exhaust crossover pipe heat shield.

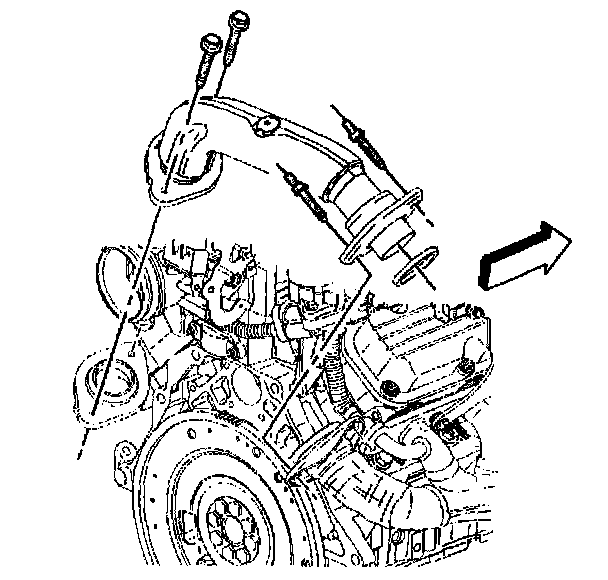

3. Remove the studs from the right exhaust crossover.
4. Remove the bolts from the left exhaust crossover.
5. Remove the exhaust crossover.
