Engine Mount Strut Replacement (Left)

Removal Procedure





1. Remove the bolt and the nut from the left engine mount strut at the left engine mount strut bracket on the engine.





2. Remove the bolt and the nut from the left engine mount strut at the left engine mount strut bracket on the upper radiator support.
3. Remove the engine mount strut.
4. Inspect the rubber in the engine mount strut for the following conditions:
- Hardness
- Splitting
- Cracking

Installation Procedure





1. Install the engine mount strut.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the bolt and the nut to the left engine mount strut at the left engine mount strut bracket on the upper radiator support.
Tighten the engine mount strut bolt to 48 Nm (35 ft. lbs.).





3. Position the P-clip to the left engine mount strut bracket bolt.

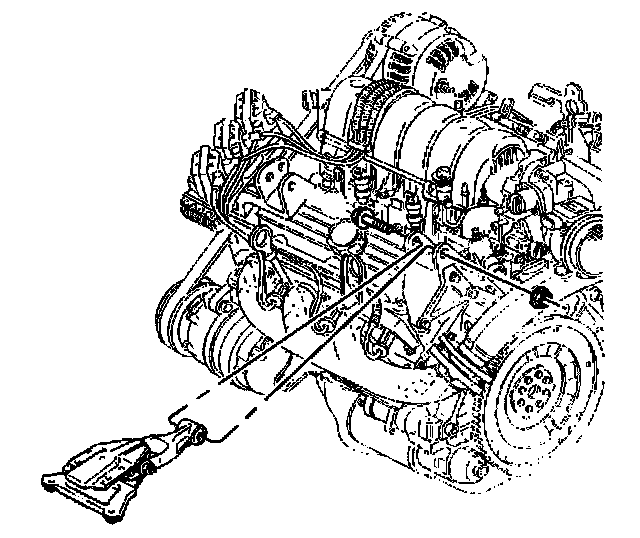

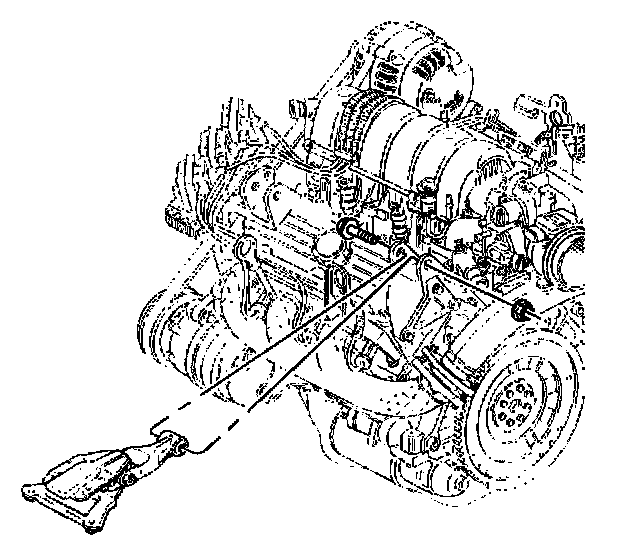

Important: The engine mount strut bolt must always be installed as shown in the graphic.





4. Install the bolt and the nut to the left engine mount strut at the left engine mount strut bracket on the engine.
Tighten the engine mount strut nut to 48 Nm (35 ft. lbs.).
