Vacuum Controls-RPO CJ3

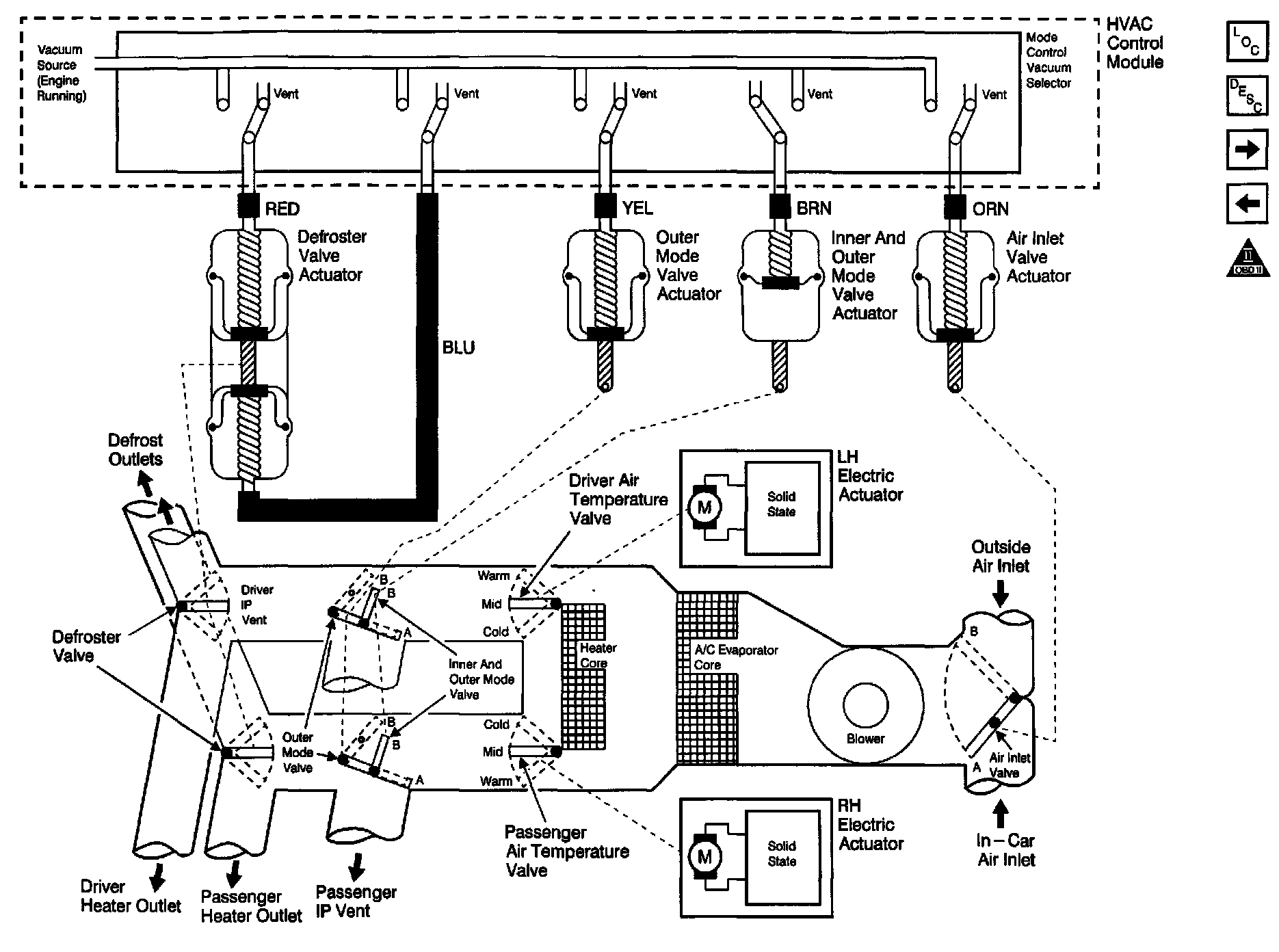

HVAC Air Delivery/Temperature Control Schematics: Vacuum Controls:





RPO CJ3: For a Description of RPO Code(s) shown in this article refer to the RPO Code List found at Vehicle/Application and ID RPO Codes
