Chevrolet
>>
2000
>>
Impala V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Right Side of Passenger Compartment (4-Door)
Right Side of Passenger Compartment (4-Door)

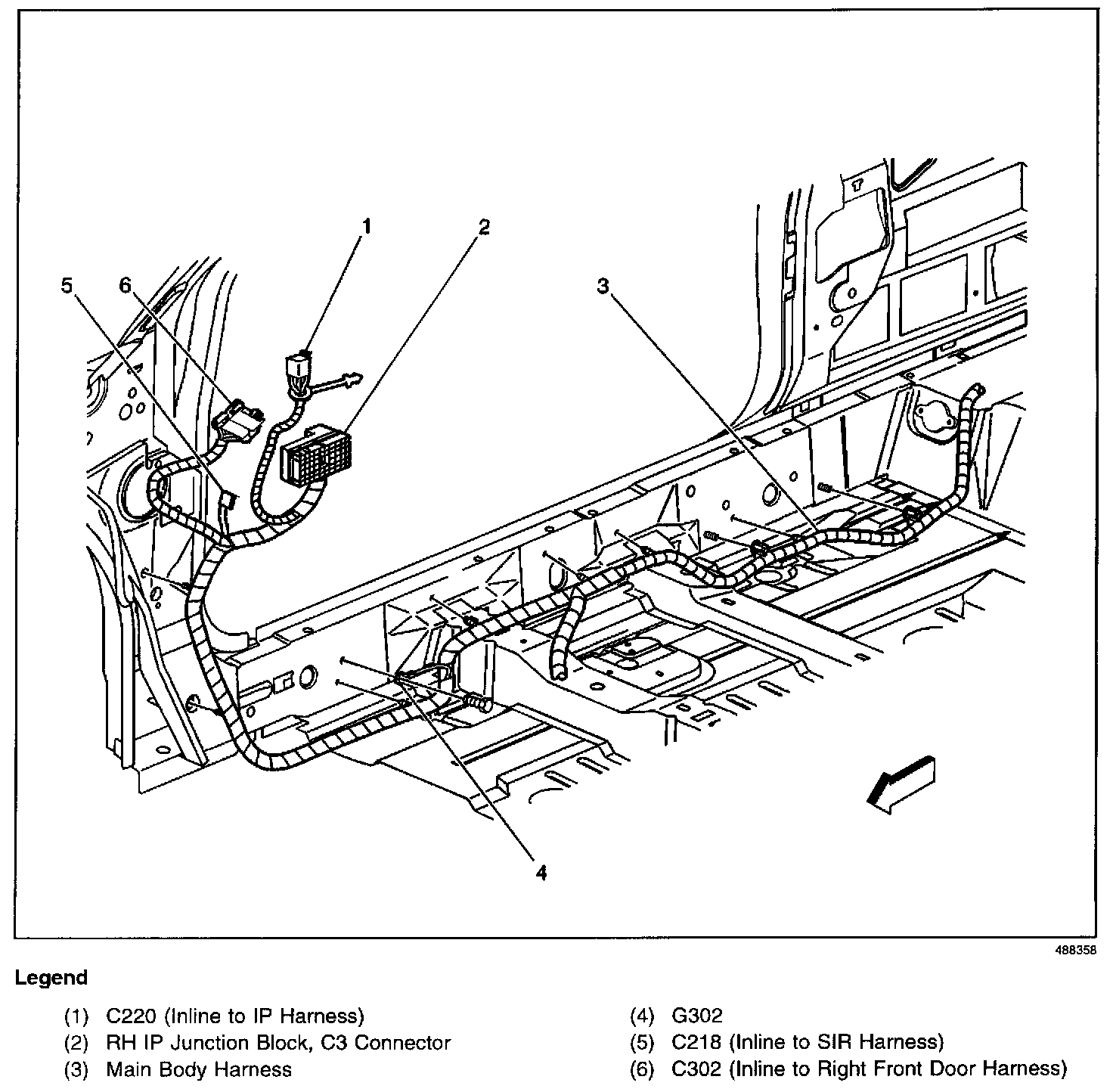

Harness Routing Views (Right Side Of Passenger Compartment (4-Door)):
