Power Seat Component (RPO KA1/AR9)

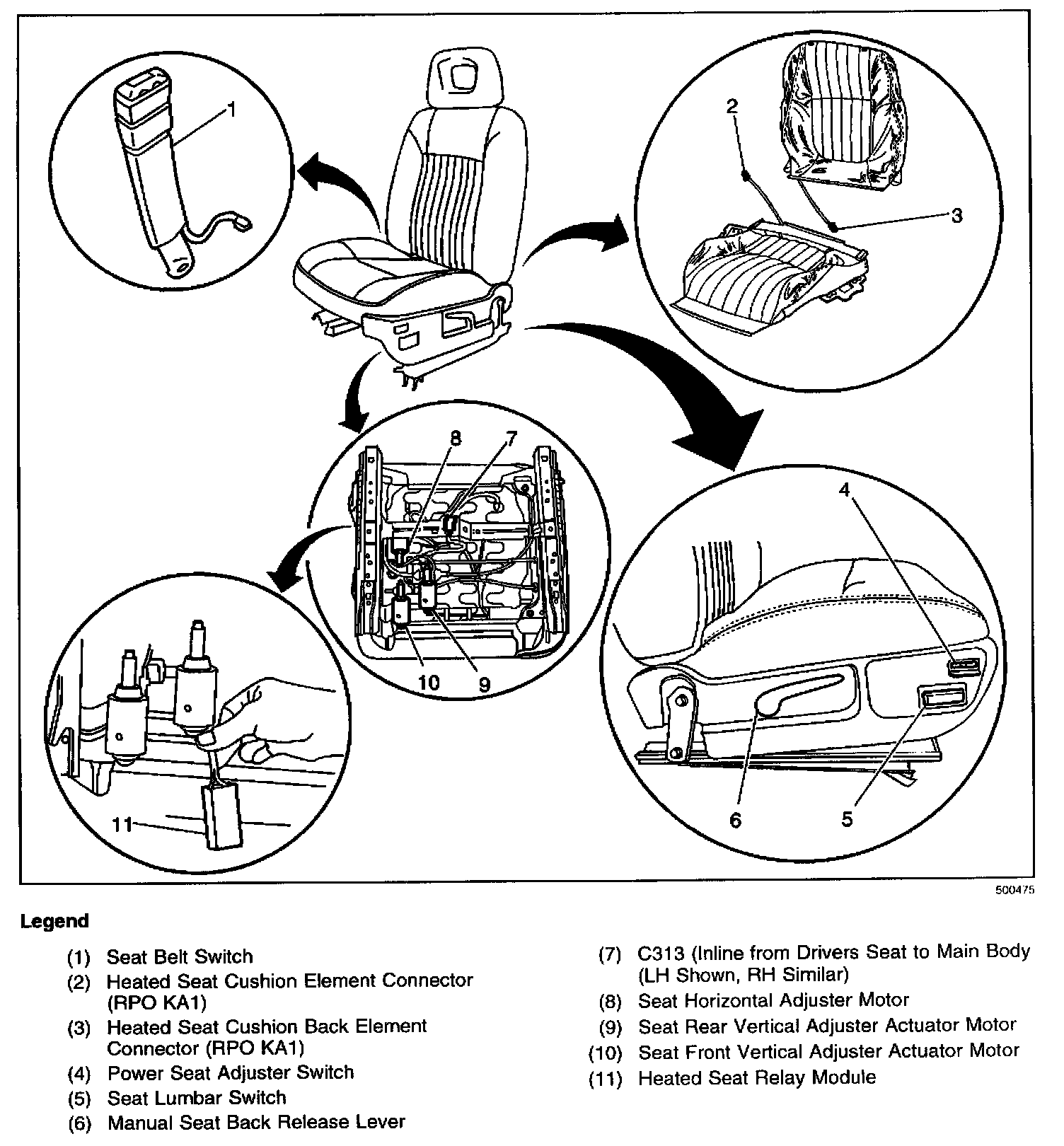

Harness Routing Views (Power Seat Component):

RPO KA1/AR9: For a Description of RPO Code(s) shown in this article refer to the RPO Code List found at Vehicle/Application and ID RPO Codes
