Left Front Side of Engine Compartment

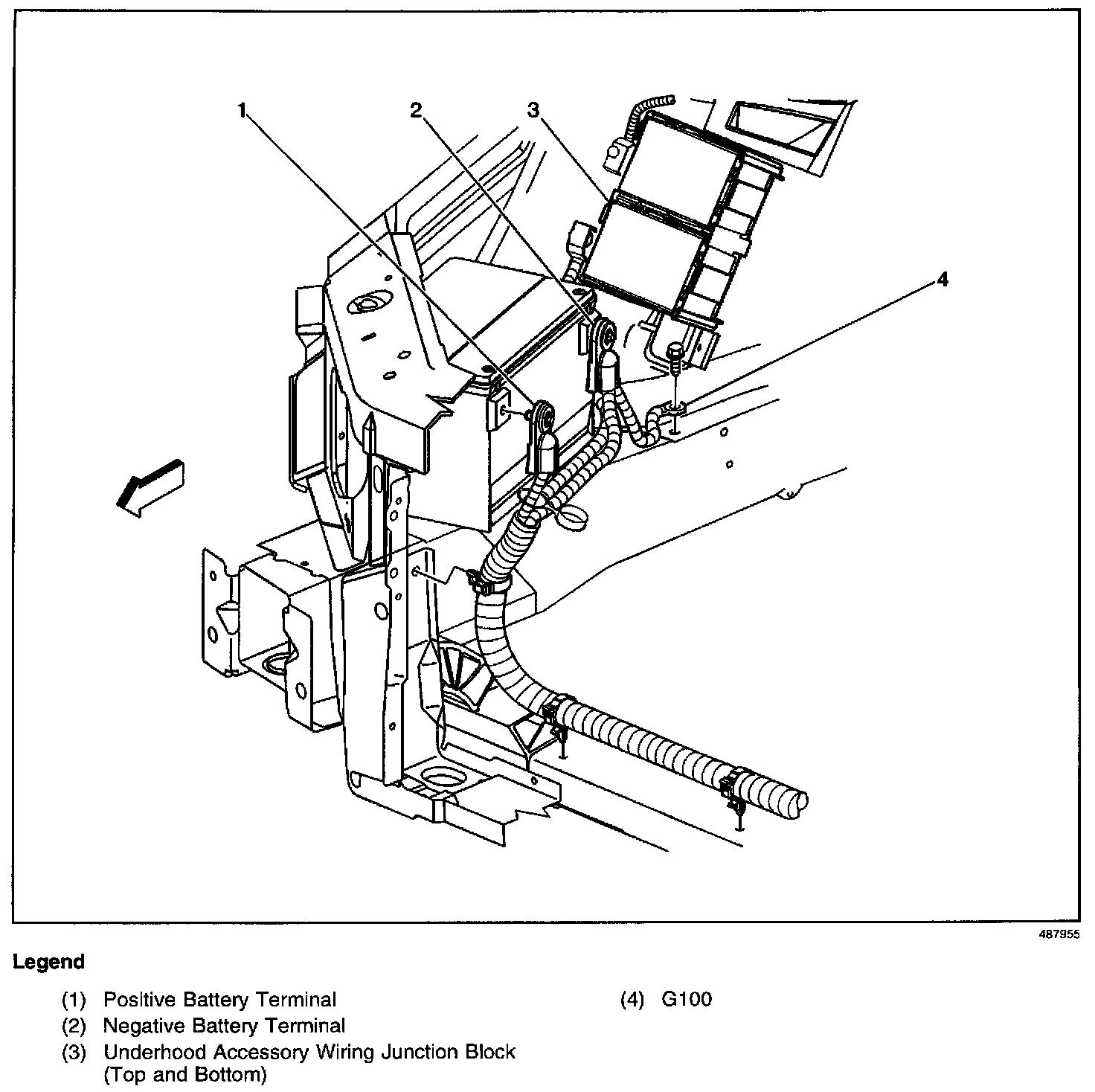

Harness Routing Views (Left Front Side Of Engine Compartment):
