Inside Rear Compartment, Right Rear Wheel Well

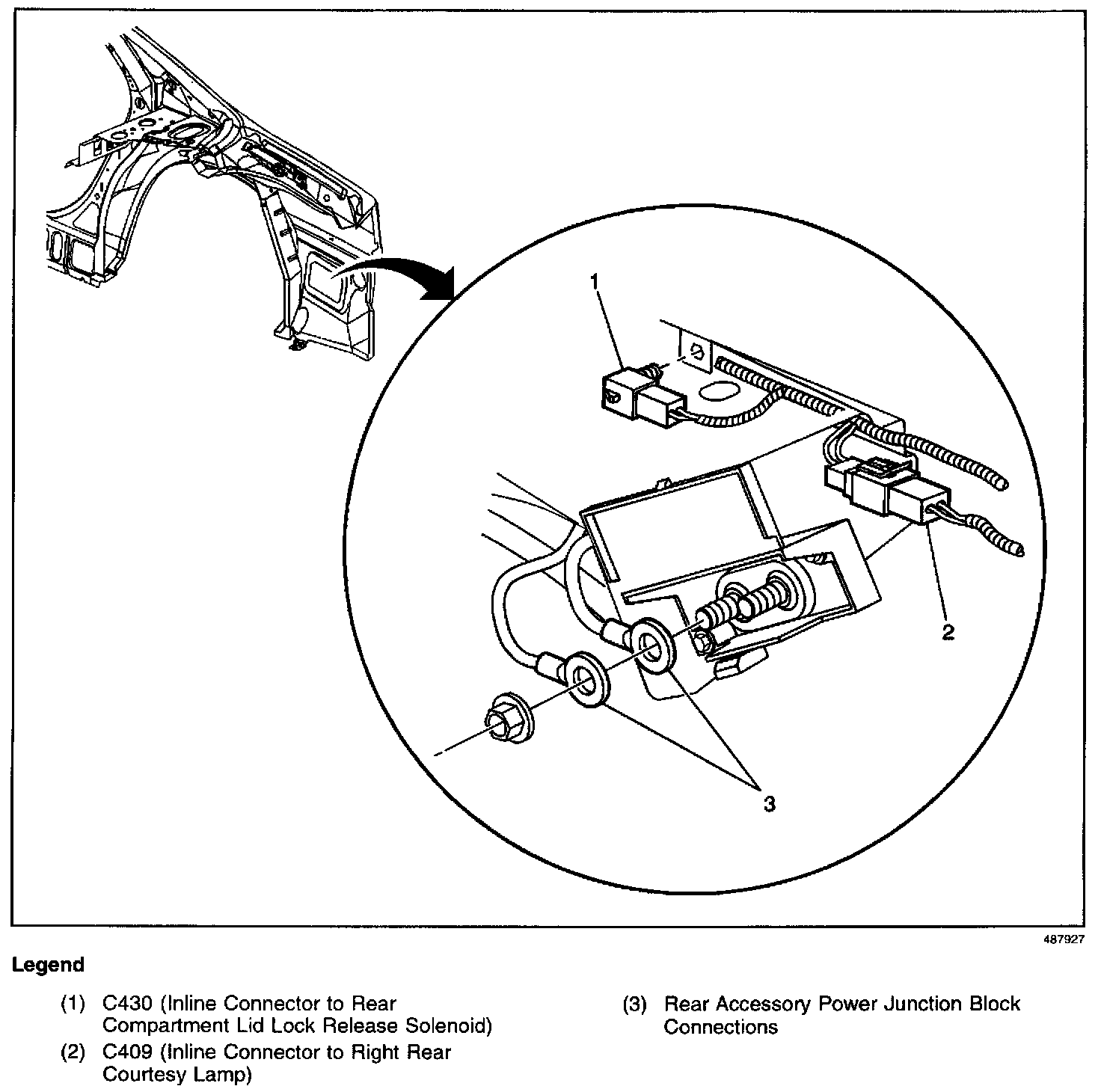

Harness Routing Views (Inside Rear Compartment, Right Rear Wheel Well):
