Cross Body Wiring Harness, Power Seats
Cross Body Wiring Harness, Power Seats

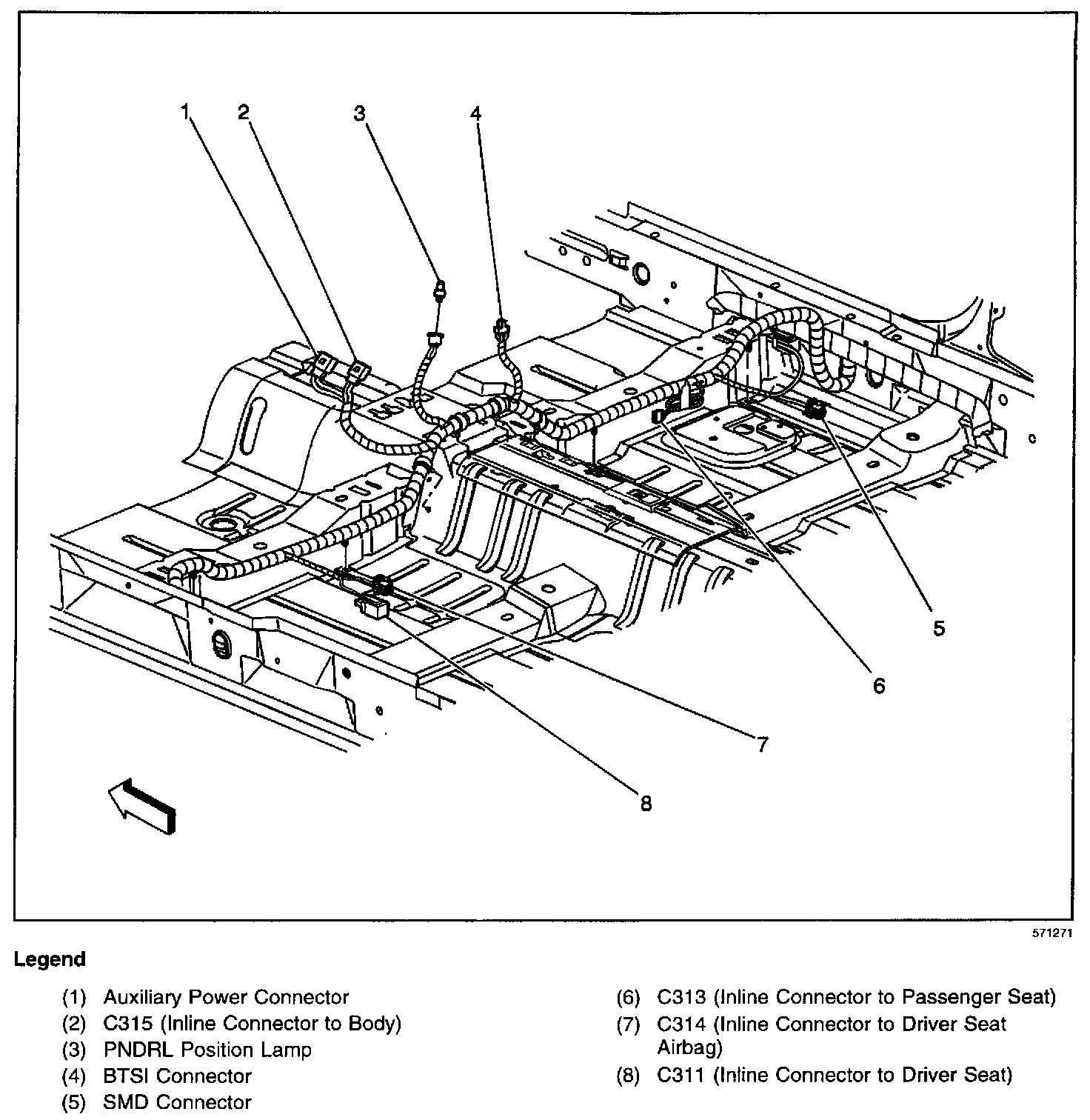

Harness Routing Views (Cross Body Harness):
