Center Console and Forward Main Body (4-Door)

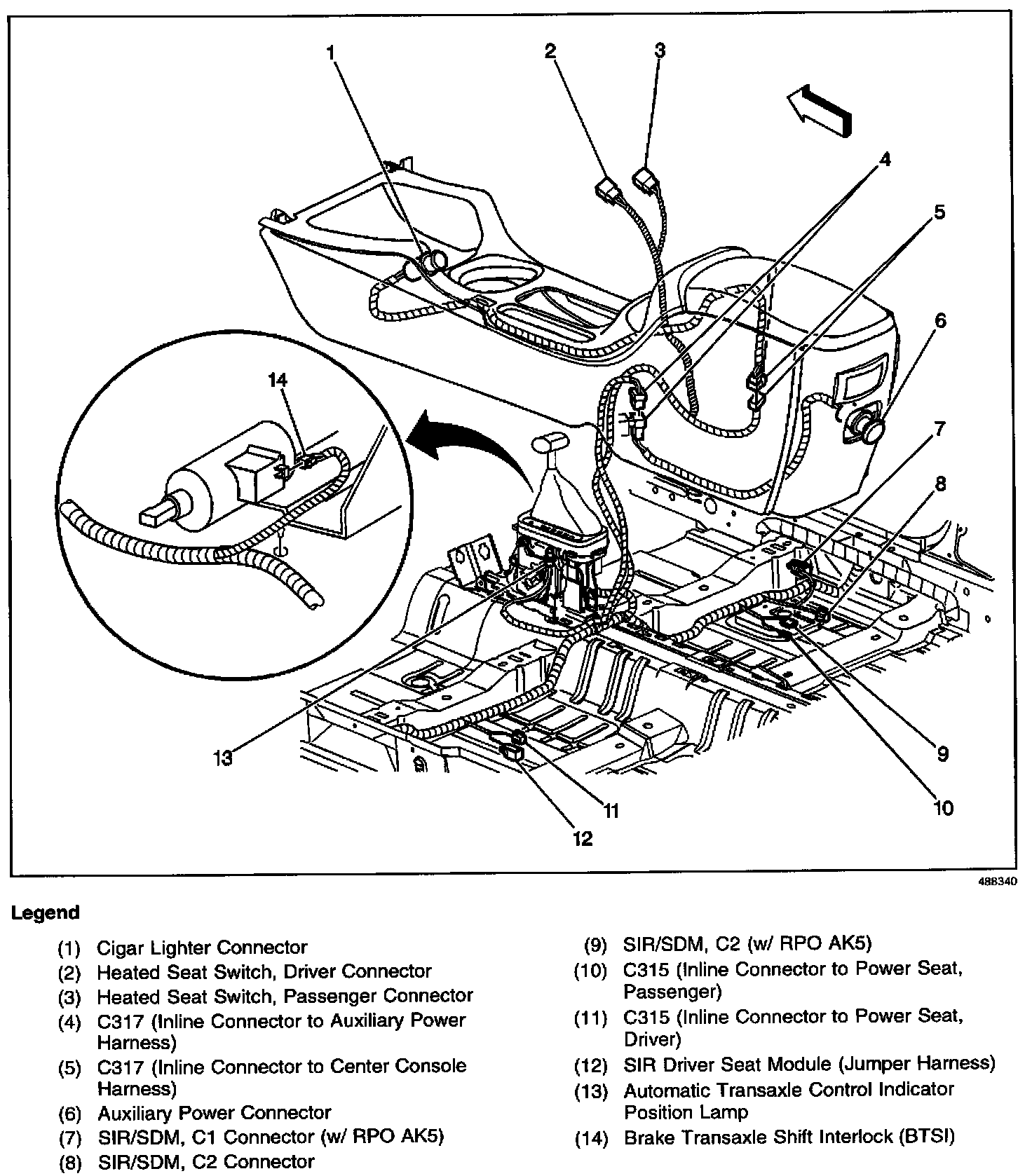

Harness Routing Views (Center Console And Forward Main Body (4-Door)):
