Below Front Seats (2-Door)
Below Front Seats (2-Door)

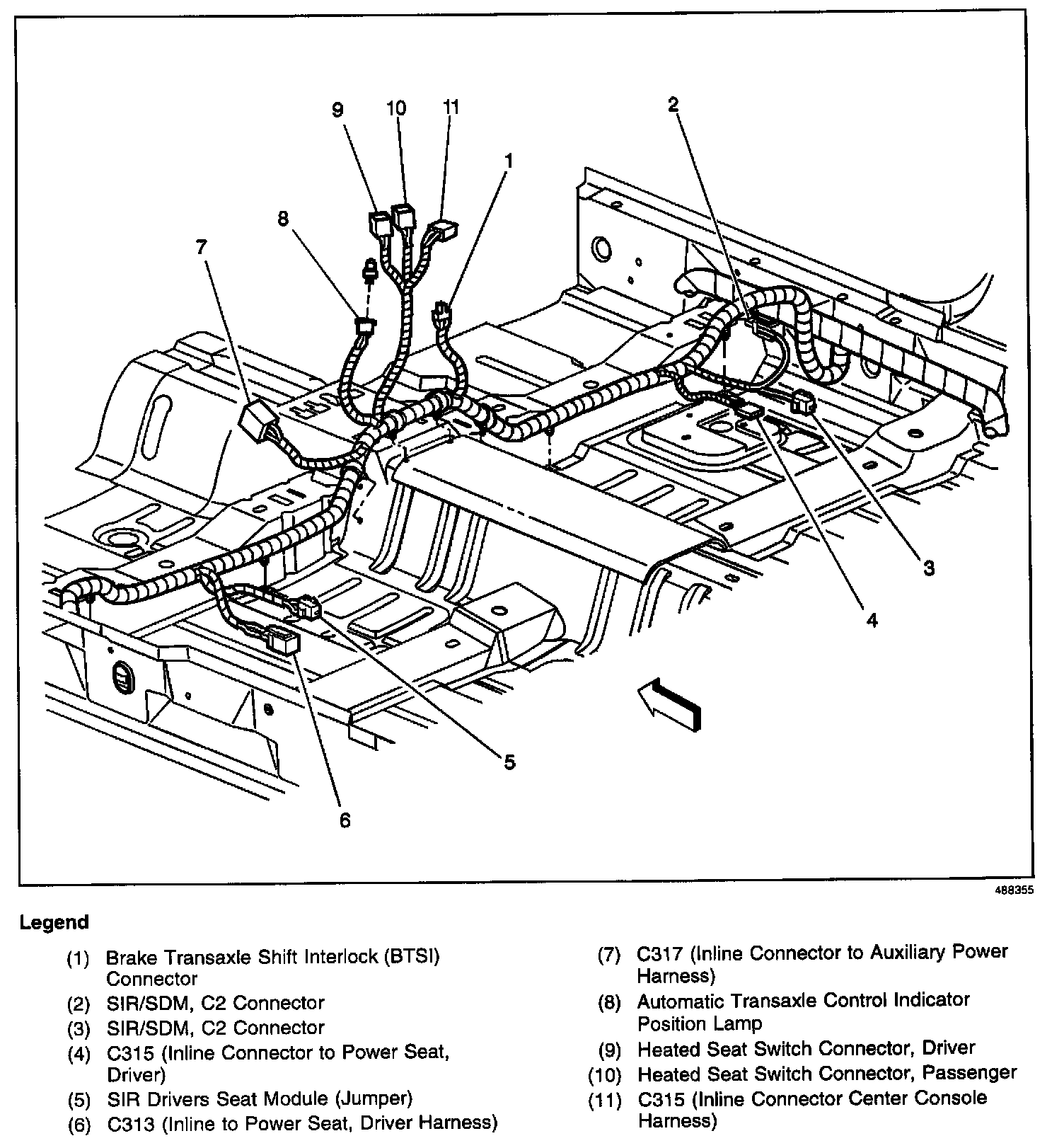

Harness Routing Views (Below Front Seats (2-Door)):
