Power, Audio Power Booster Ground (UQ3)

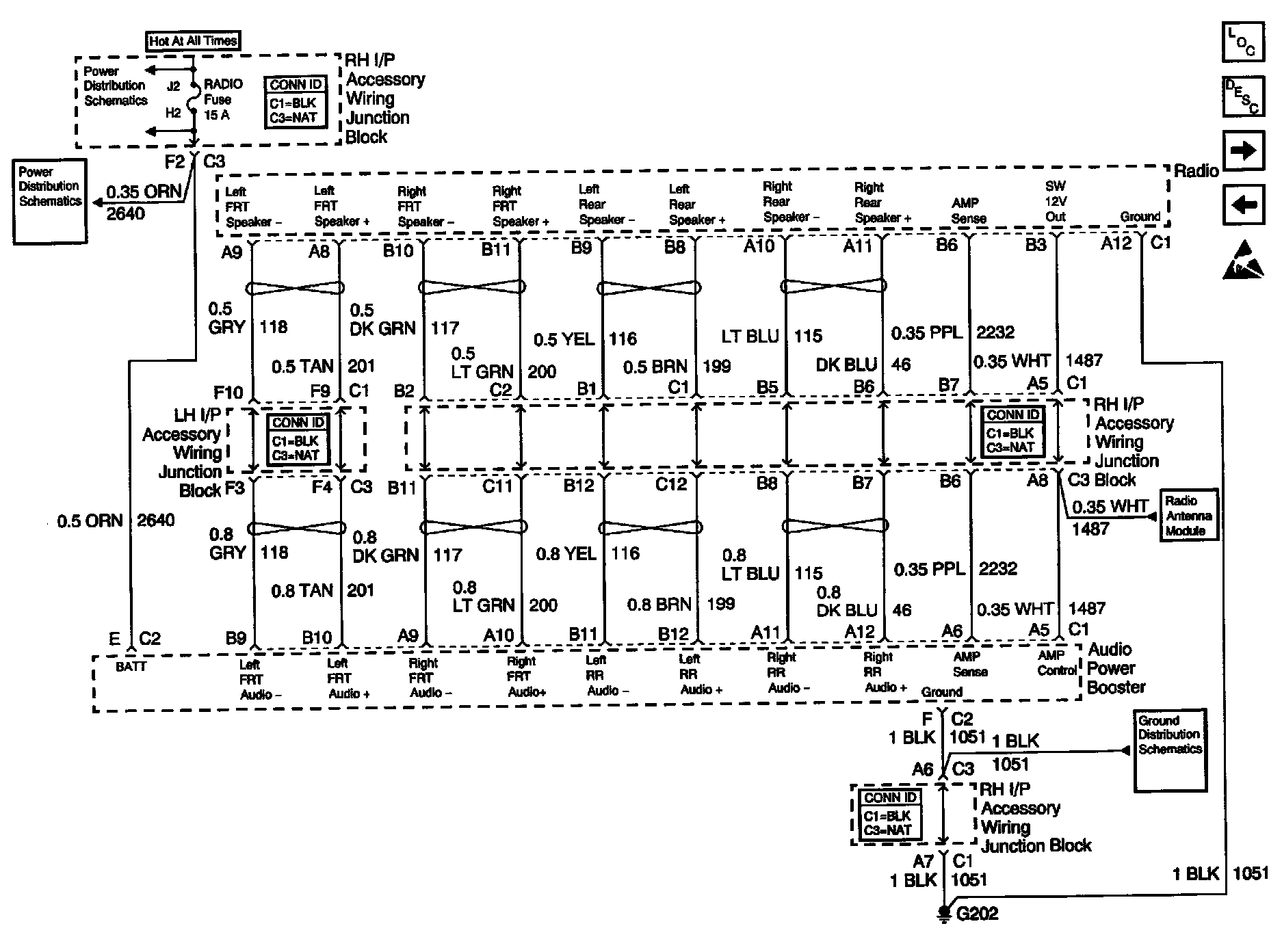

Radio/Audio System Schematics: Power, Audio Power Booster, Ground:





RPO UQ3: For a Description of RPO Code(s) shown in this article refer to the RPO Code List found at Vehicle/Application and ID RPO Codes
