Audio Power Booster, Bose Speaker System

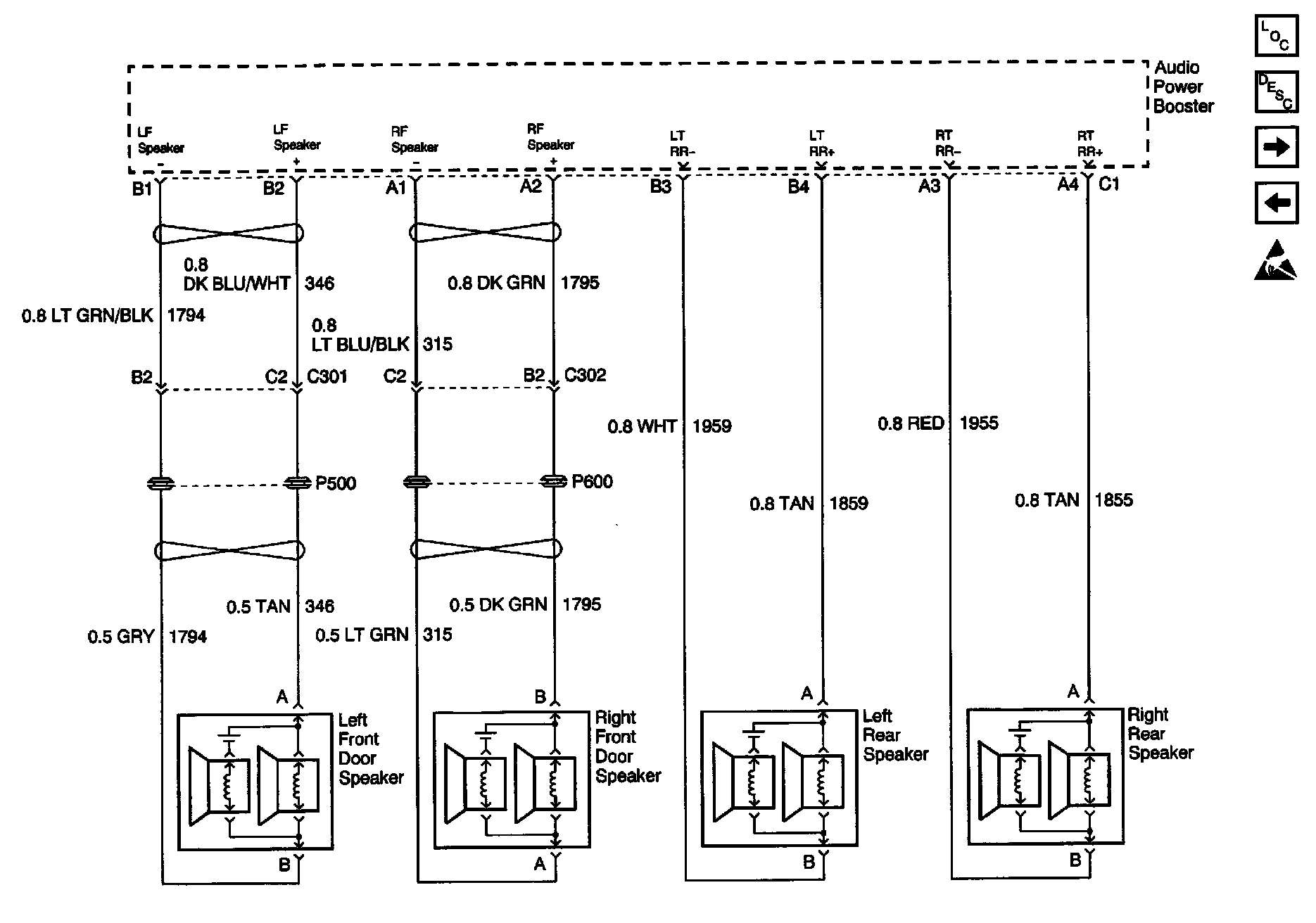

Radio/Audio System Schematics: Audio Power Booster, Bose Speaker System:
