Home >> Chevrolet >> 2000 >> Impala V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Low Tire Pressure Indicator >> Schematic and Routing Diagrams

Schematic and Routing Diagrams

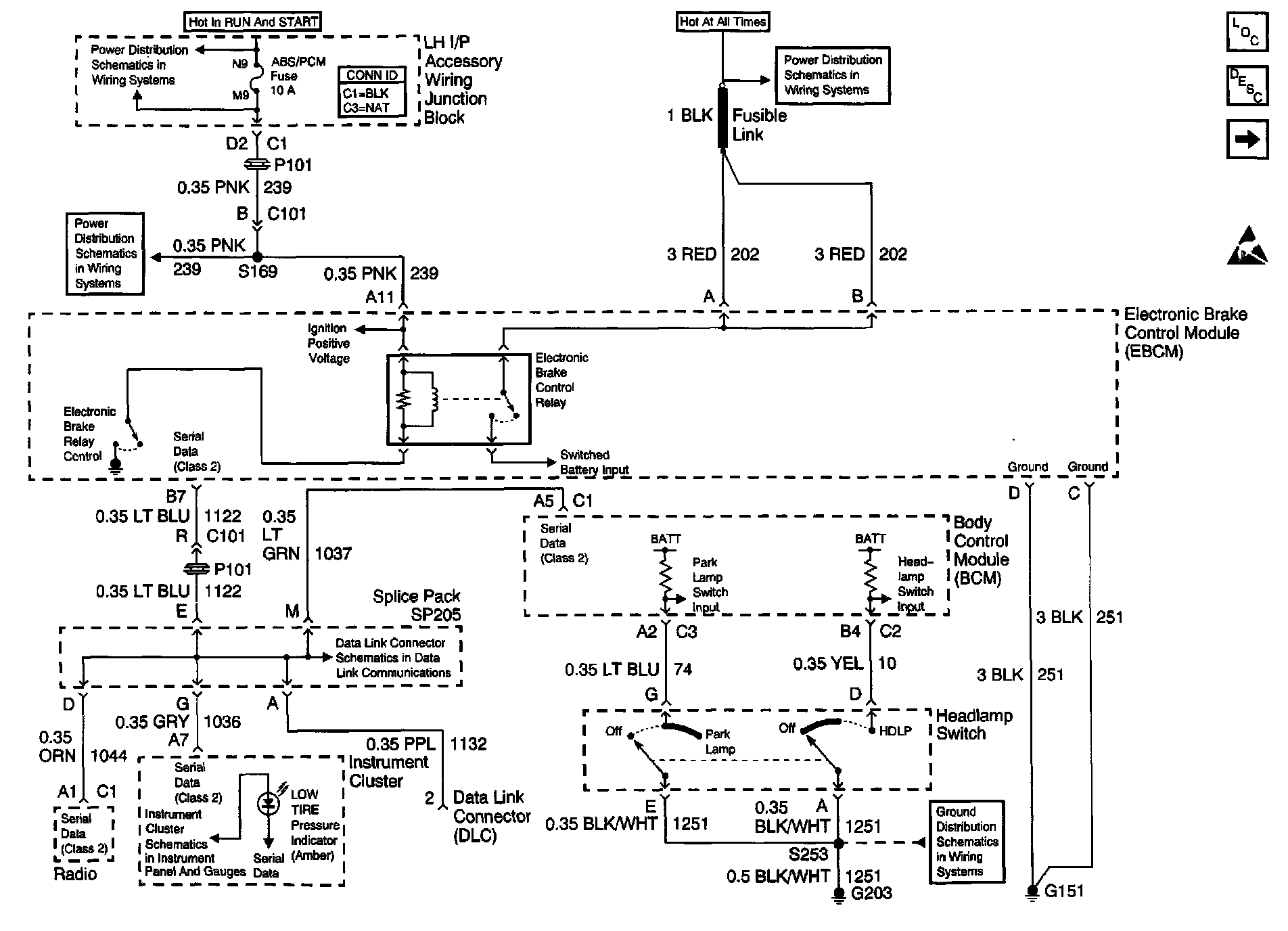

Tire Pressure Monitoring System Schematics (EBCM, Power, Ground and Instrument Cluster)

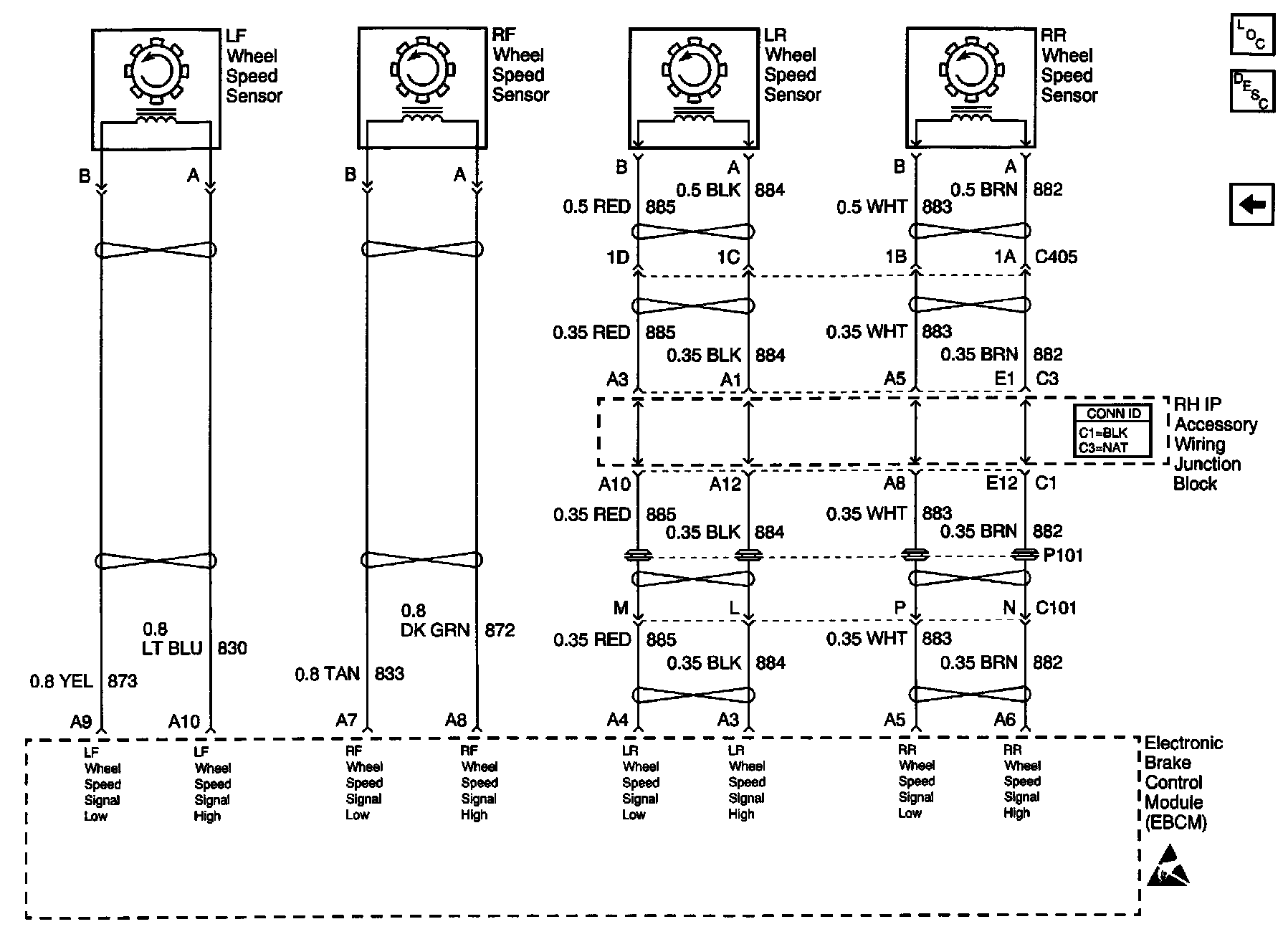

Tire Pressure Monitoring System Schematics (Wheel Speed Sensors)
