BCM, Footwell Lamps and Rear Compartment Lamp

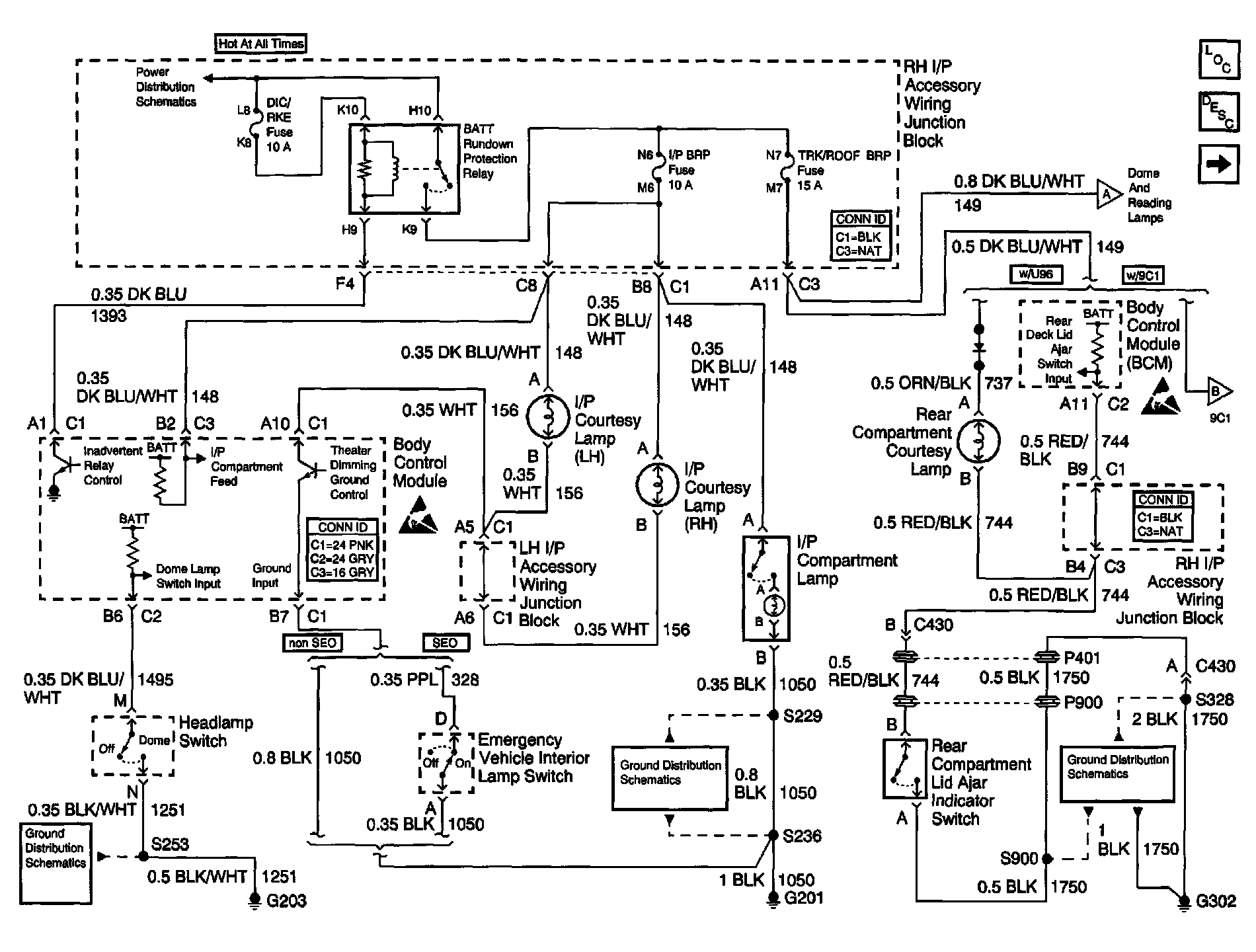

Interior Lights Schematics: BCM, Footwell Lamps And Rear Compartment Lamp:
