BCM, DR Lock, Door WDO SW, HVAC, Radio, & Fog LP SW LPs

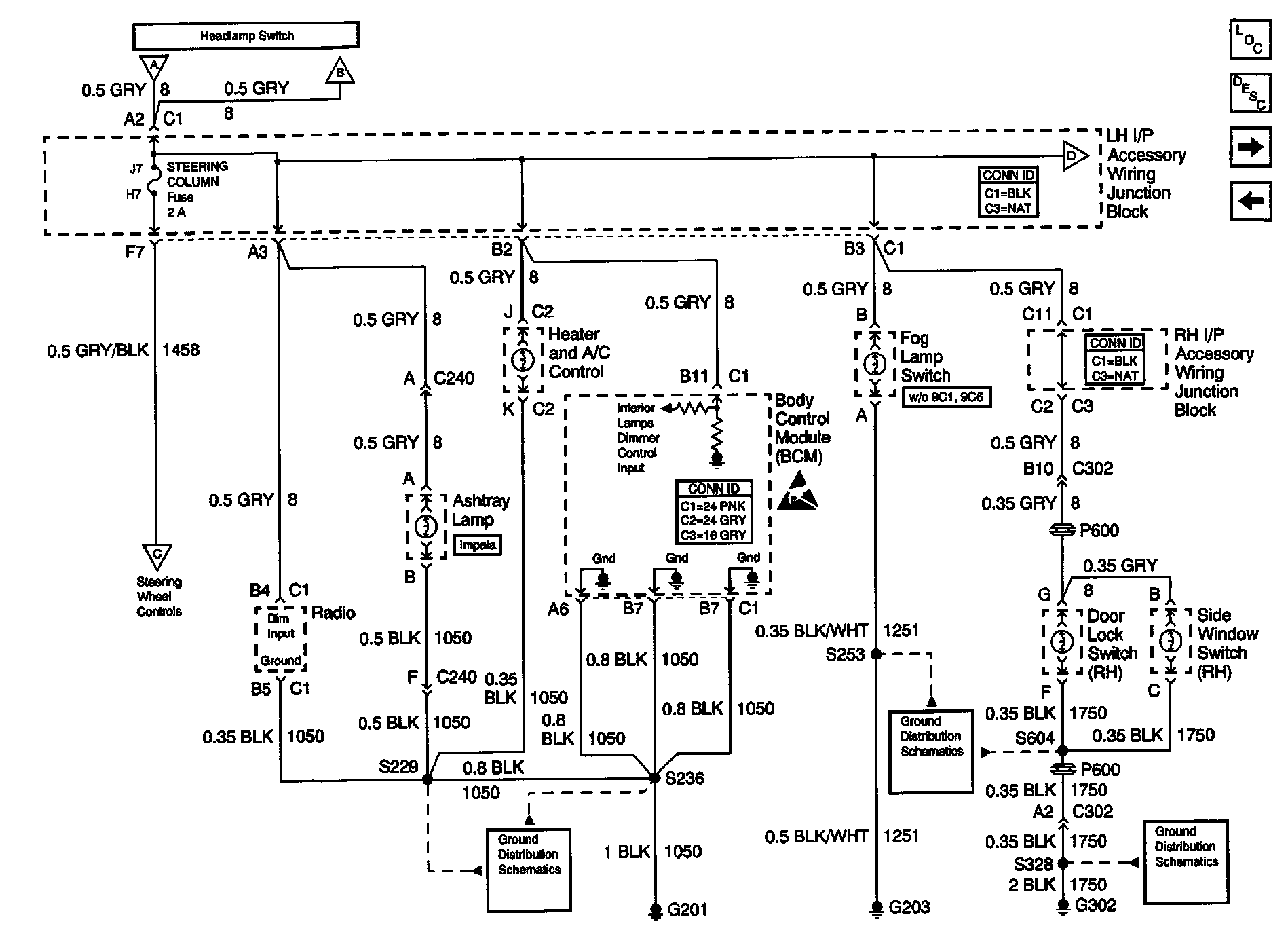

Interior Lights Dimming Schematics: BCM, Door Lock, Door Window Switch, HVAC, Radio, And Fog Lamp Switch Lamps:
