Front Park, Turn/Hazard Lamps-2 Door

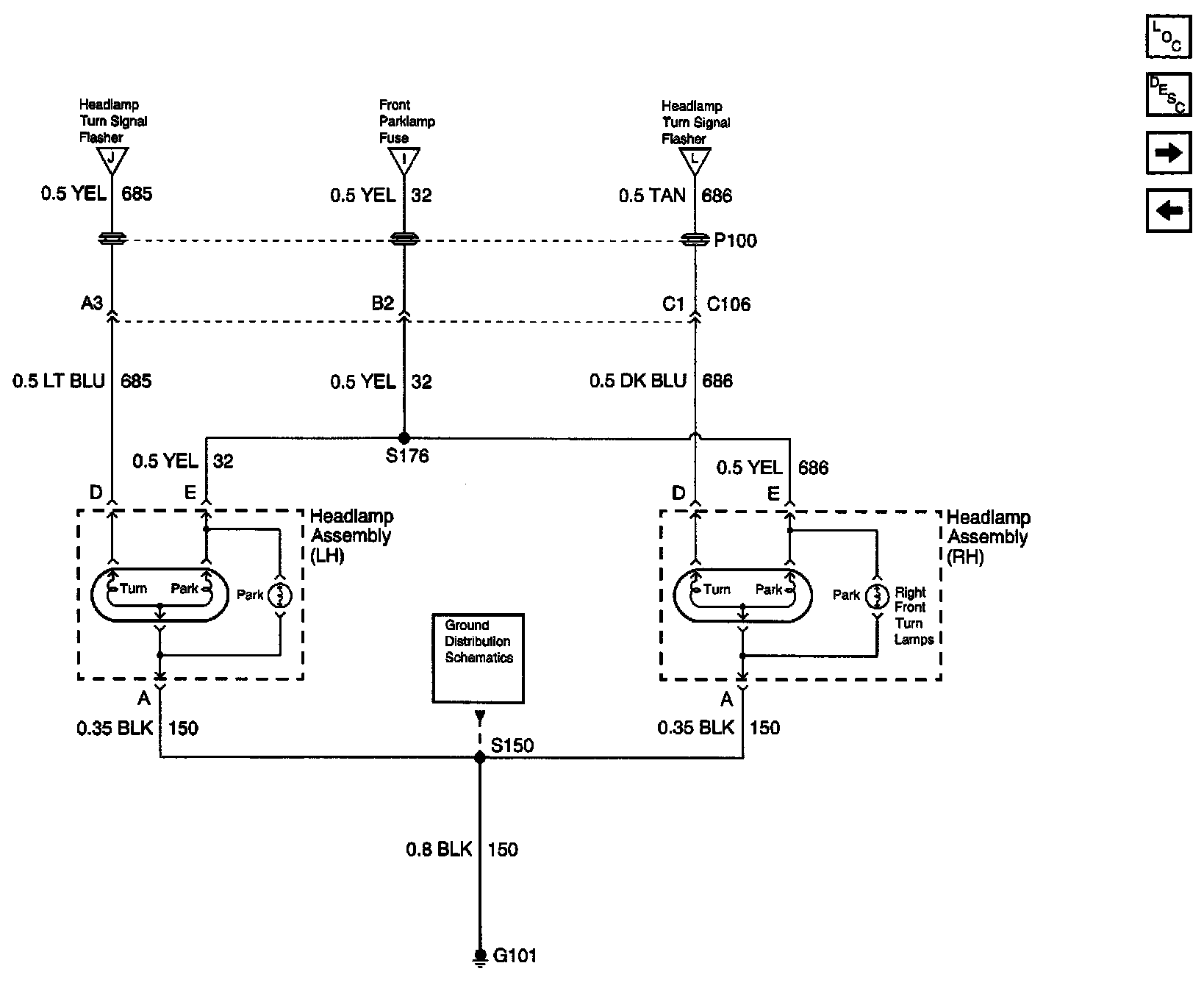

Exterior Lights Schematics: Front Park, Turn/Hazard Lamps-2 Door:
