Instrument Cluster Analog Schematics
>>
Direct Inputs
Direct Inputs

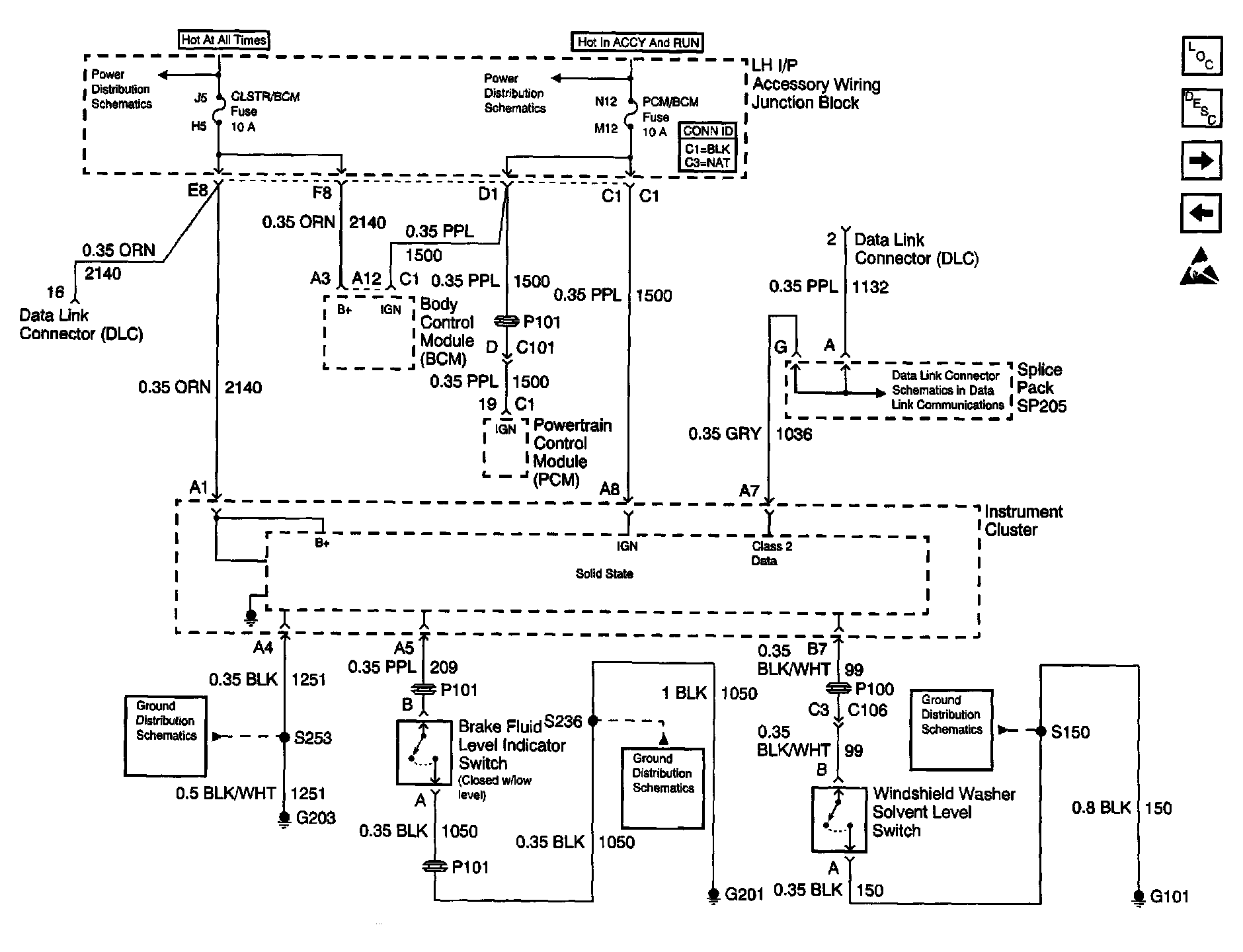

Instrument Cluster Analog Schematics: Direct Inputs 1 Of 2:

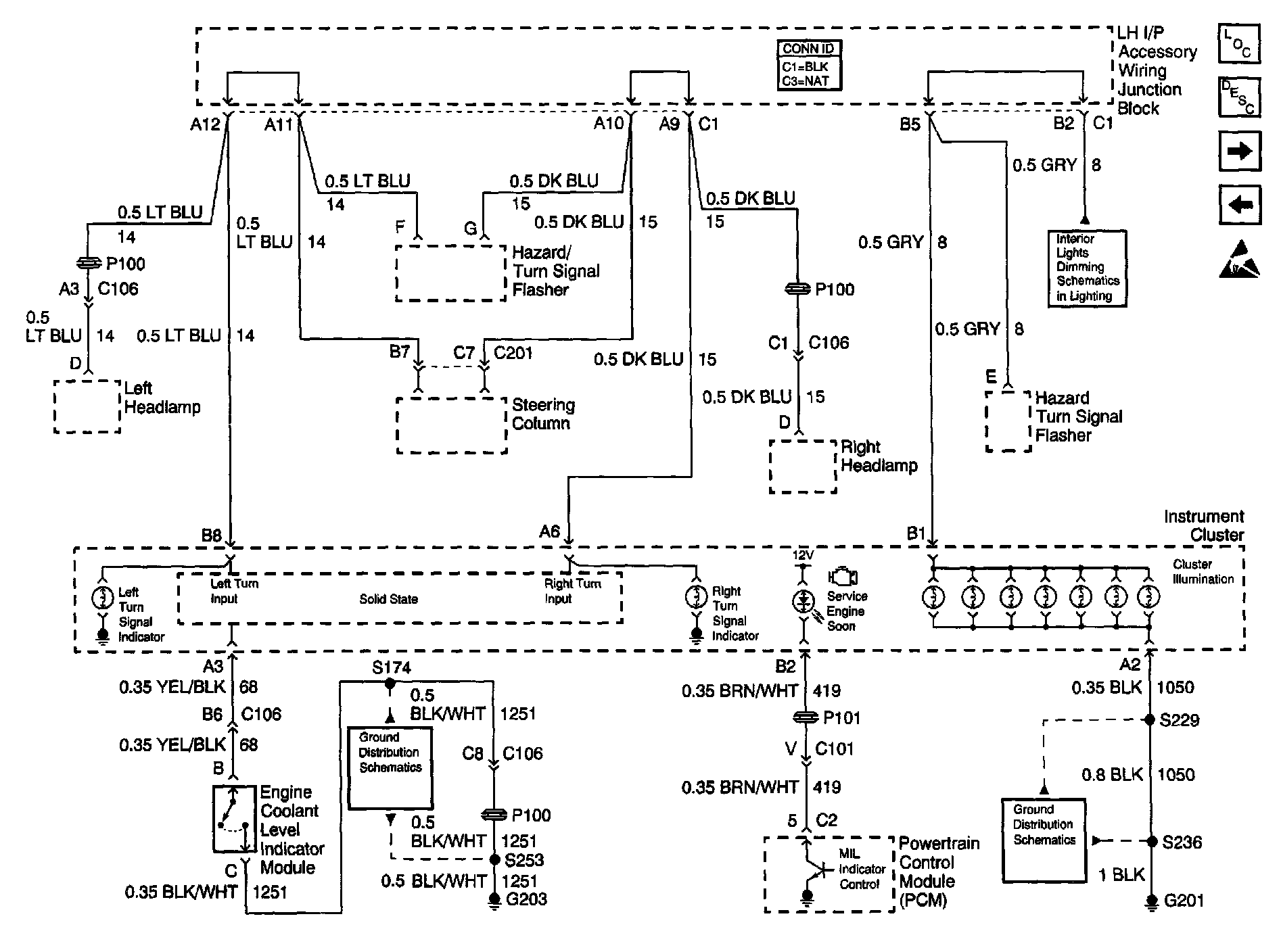

Instrument Cluster Analog Schematics: Direct Inputs 2 Of 2:
