Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Audible Warning Schematics
>>
PWR, Gnd, Ign Key Alarm Sw, HDLP Sw & Park Indicator Sw
PWR, Gnd, Ign Key Alarm Sw, HDLP Sw & Park Indicator Sw

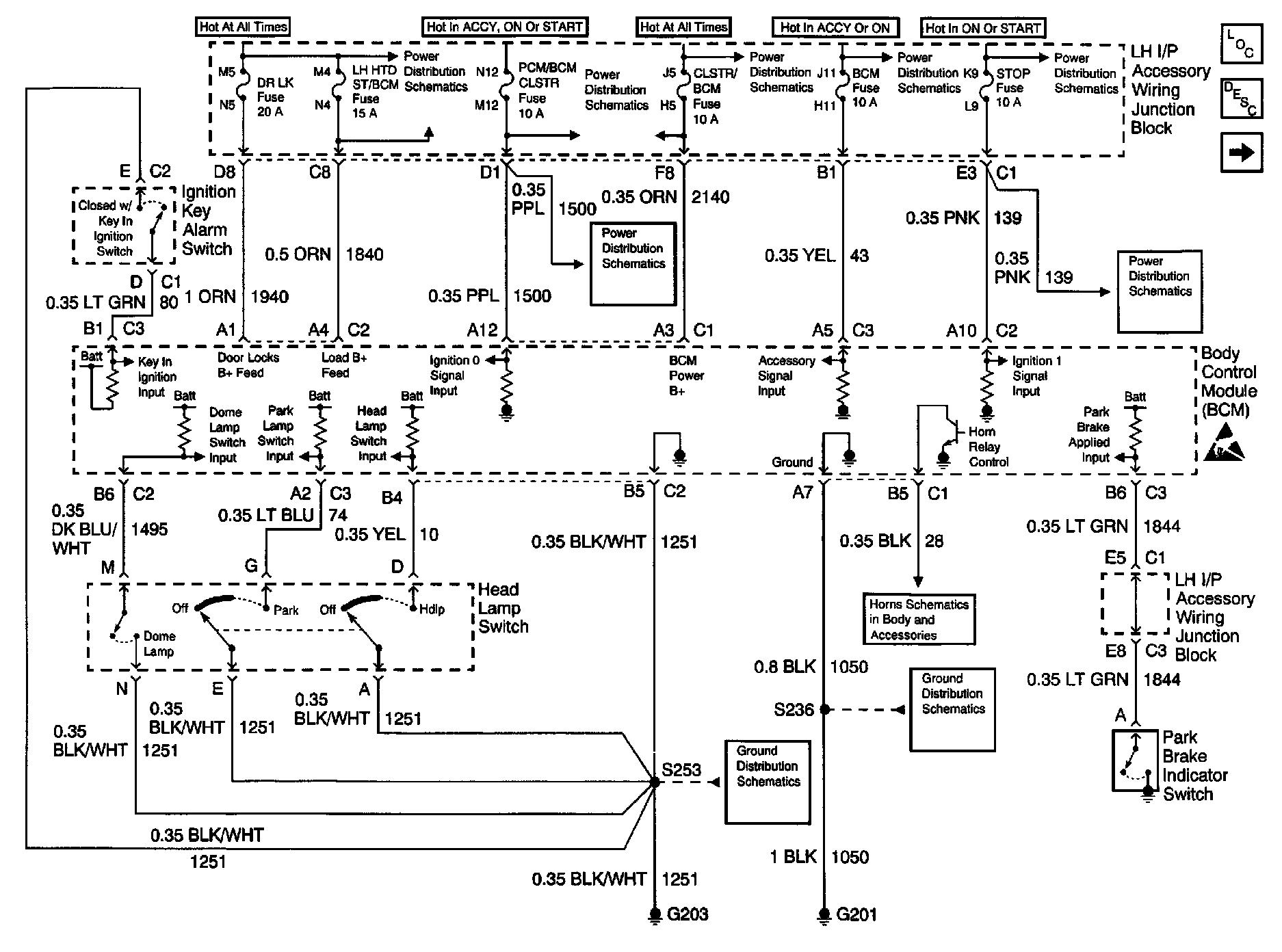

Audible Warnings Schematics: PWR, Gnd, Ign Key Alarm SW, Headlamp SW And Park Indicator SW:
