Impala V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antitheft and Alarm Systems
>>
Power/Grounds, Passlock
Power/Grounds, Passlock

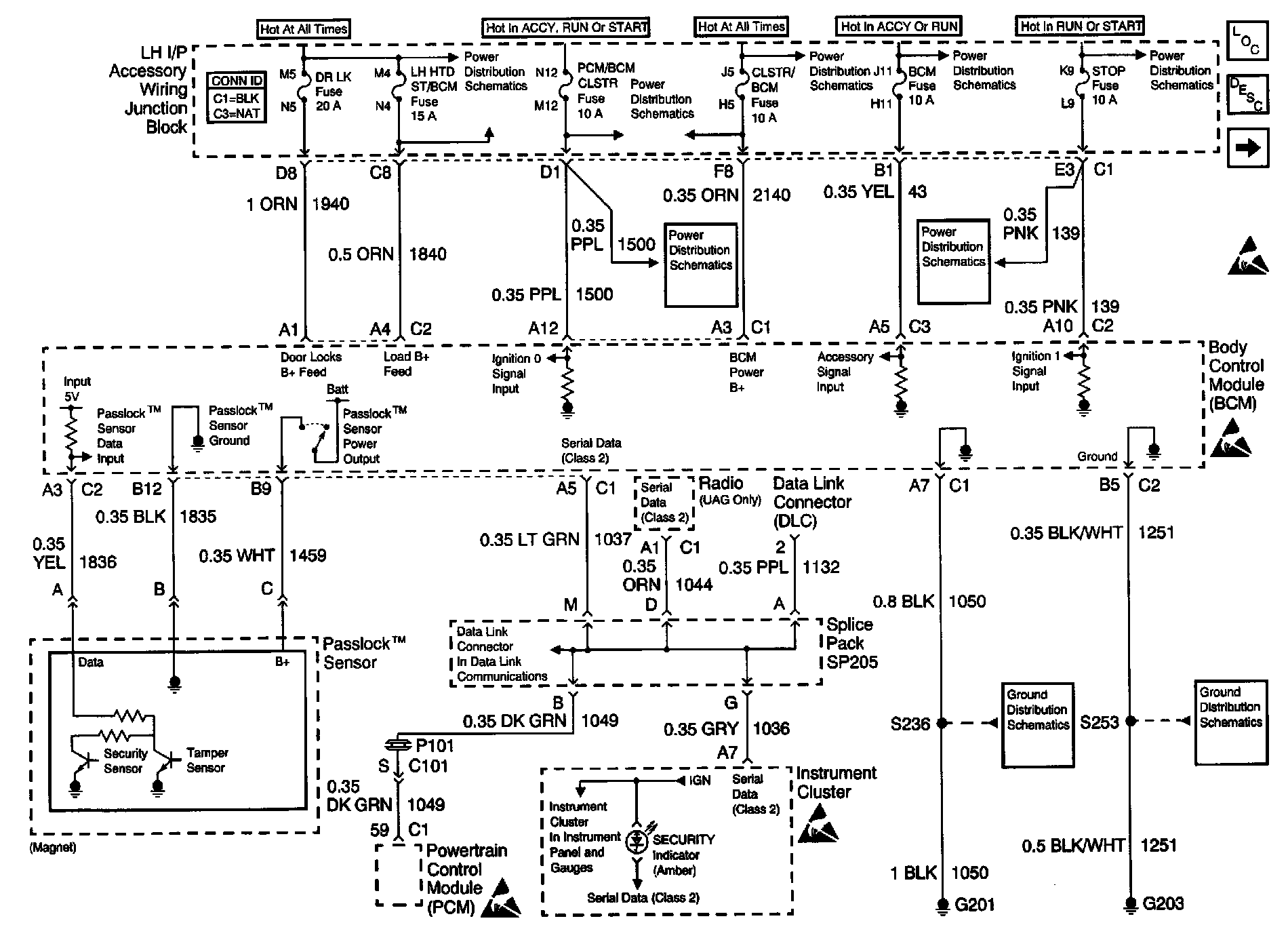

Theft Deterrent System Schematics: Power/Grounds, Passlock:
