Air Bag Systems
>>
SIR Lamp, DLC, Driver Side Air Bag and Seat Belt Switch)
SIR Lamp, DLC, Driver Side Air Bag and Seat Belt Switch)

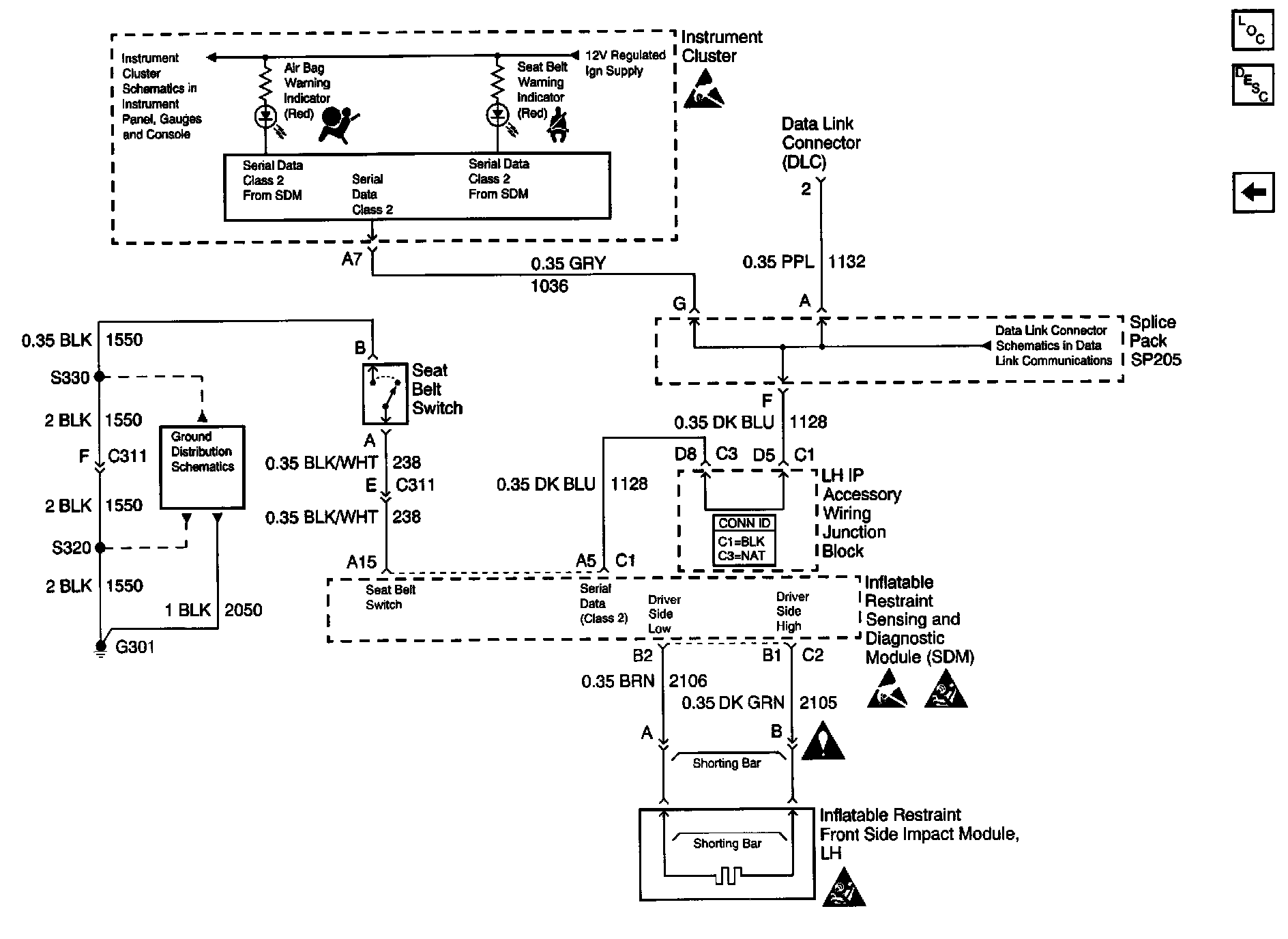

SIR Schematics: SIR Lamp, DLC, Driver Side Air Bag, And Seat Belt Switch:
