Home >> Chevrolet >> 2000 >> Impala V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio/Stereo >> Radio C1 (4 - Door)

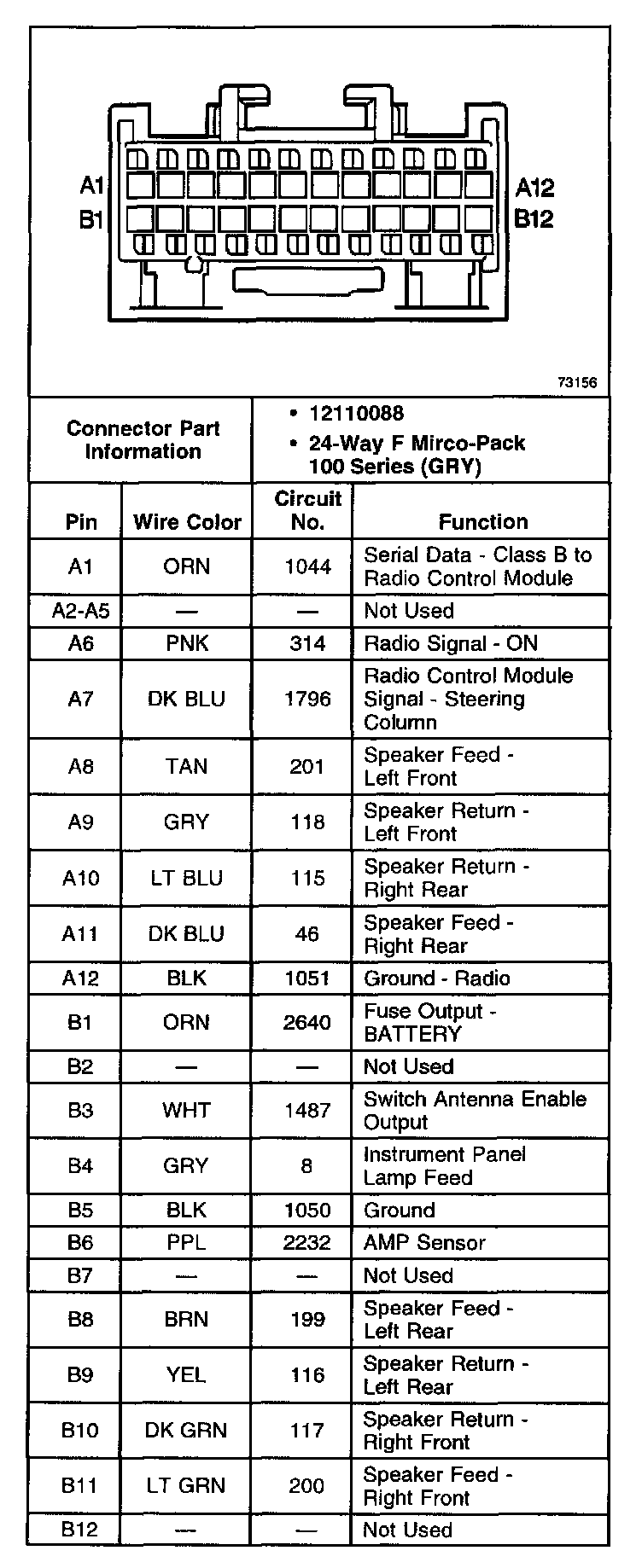

Radio C1 (4 - Door)

Radio, C1 (4-Door):
