Home >> Chevrolet >> 2000 >> Impala V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio/Stereo >> Radio C1 (2 - Door)

Radio C1 (2 - Door)

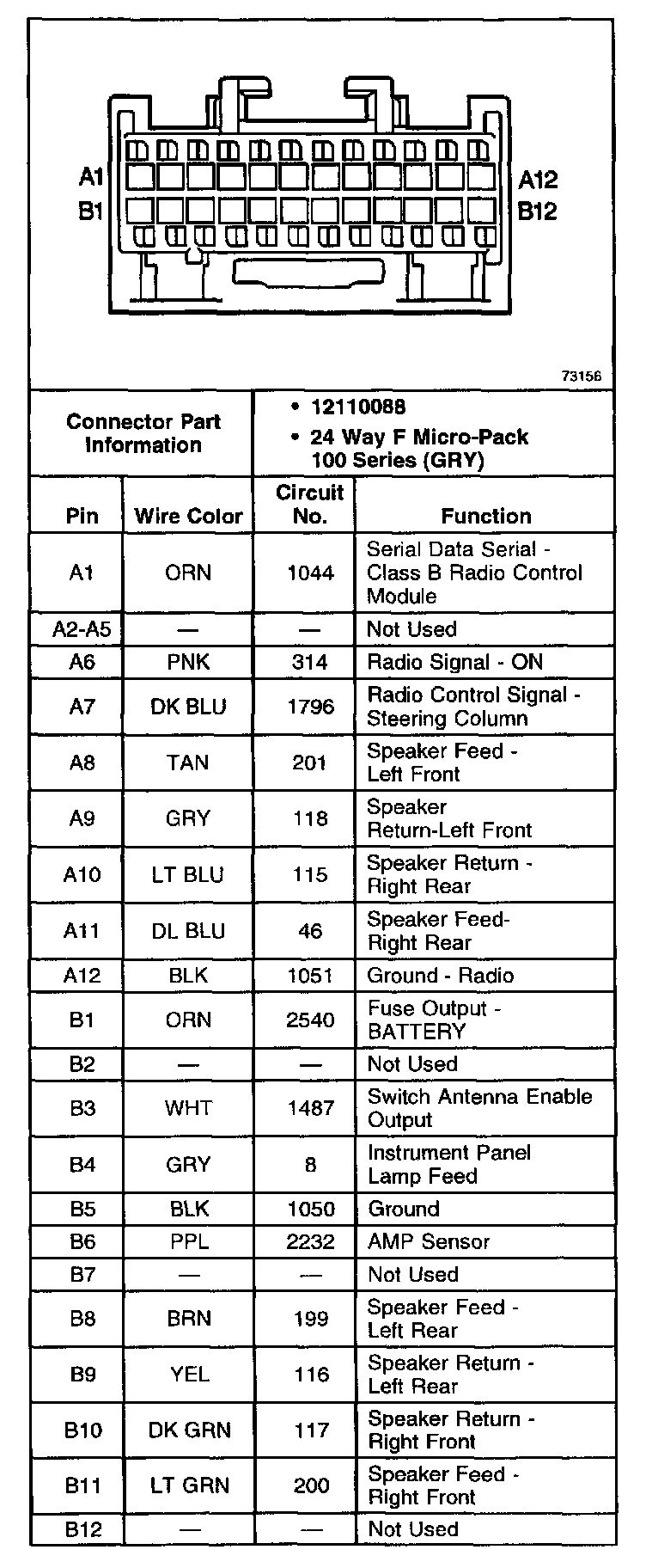

Radio, C1 (2-Door):



Radio, C2 (2-Door):
