LH IP Accessory Wiring Junction Block, C3

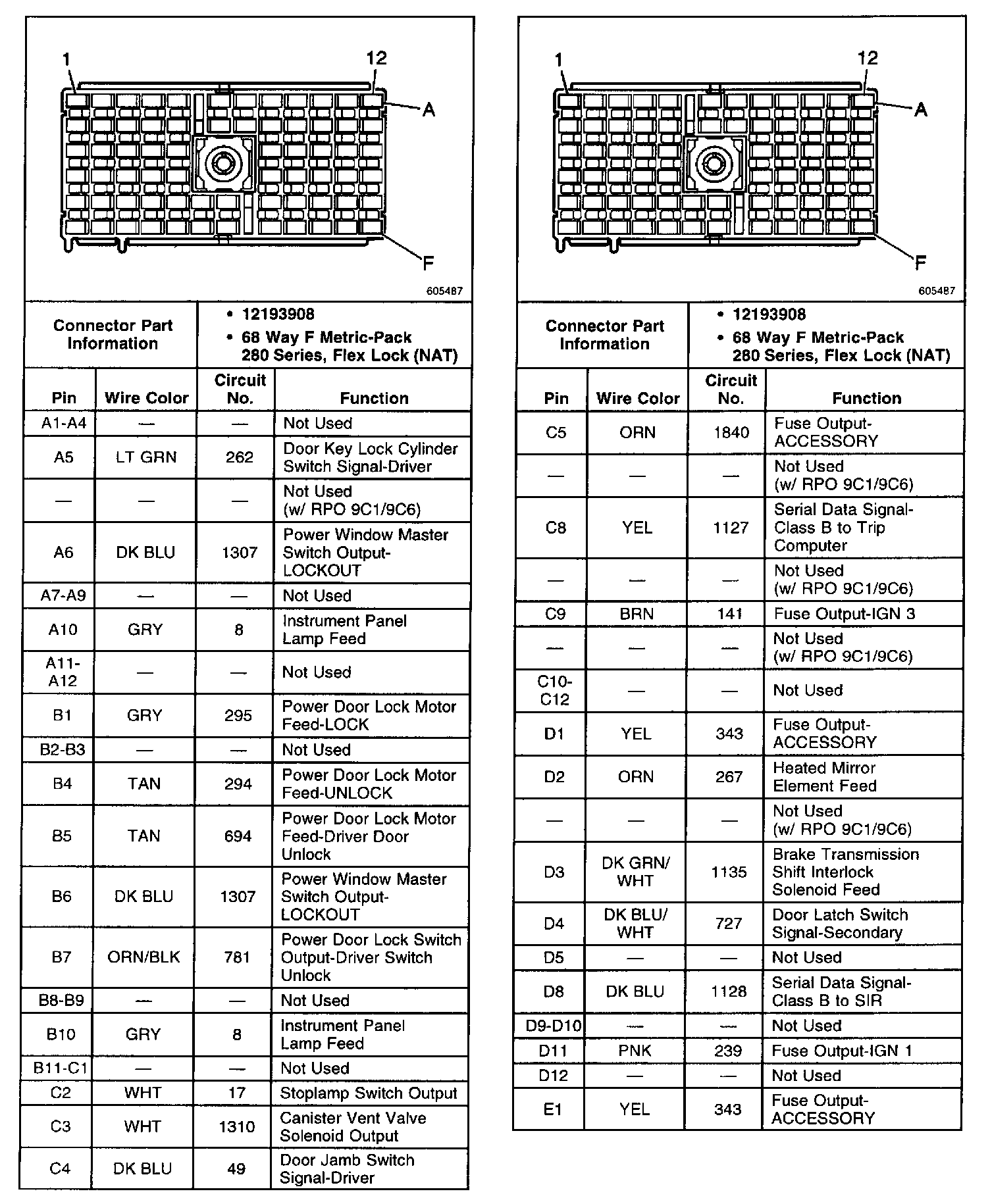

LH IP Accessory Wiring Junction Block, C3 (Part 1 Of 2):

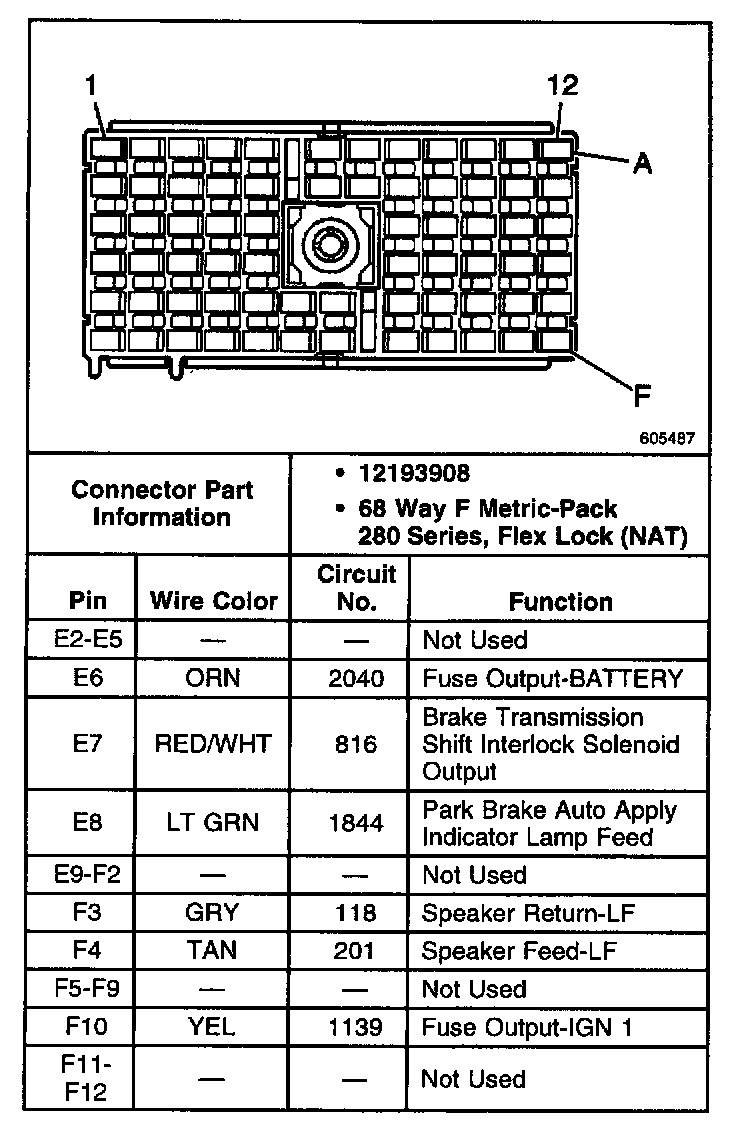

LH IP Accessory Wiring Junction Block, C3 (Part 2 Of 2):
