Chevrolet
>>
2000
>>
Impala V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Brake Warning System Schematics

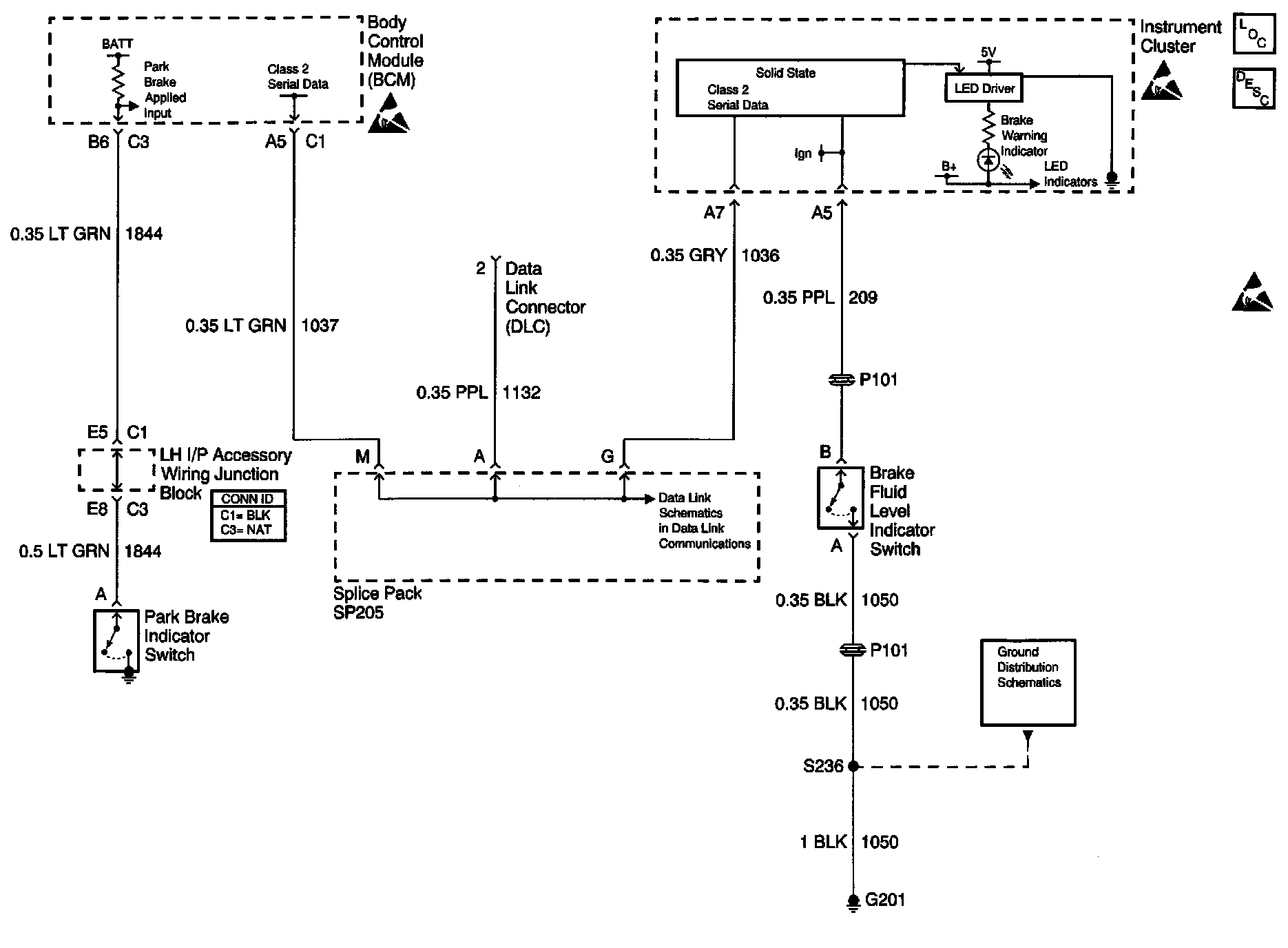

Brake Warning System Schematics
Brake Warning System Schematics:
