Sealing Strip Replacement - Door Bottom - Rear

TOOLS REQUIRED
J 38778 Door Trim Pad Clip Remover

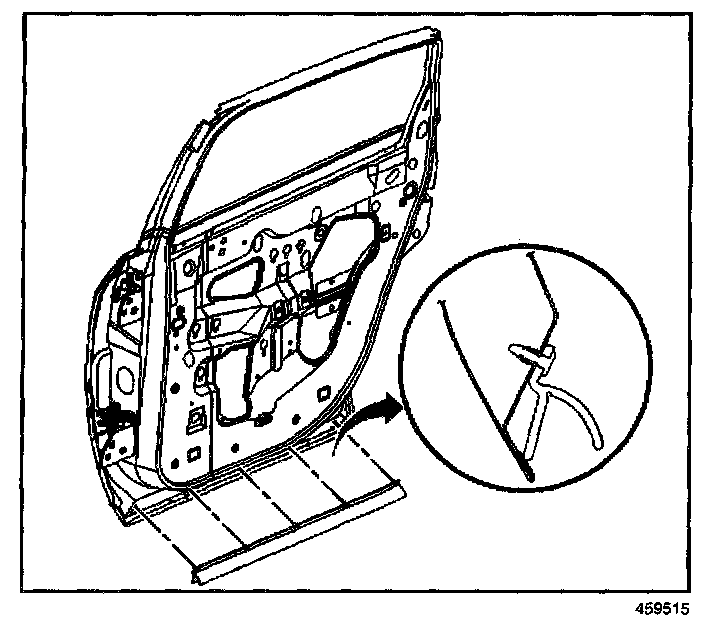

REMOVAL PROCEDURE




1. Open the rear door.
2. Remove the push-in retainers from the rear door bottom auxiliary sealingstrip using the J 38778.
3. Remove the door bottom auxiliary sealingstrip from the rear door.

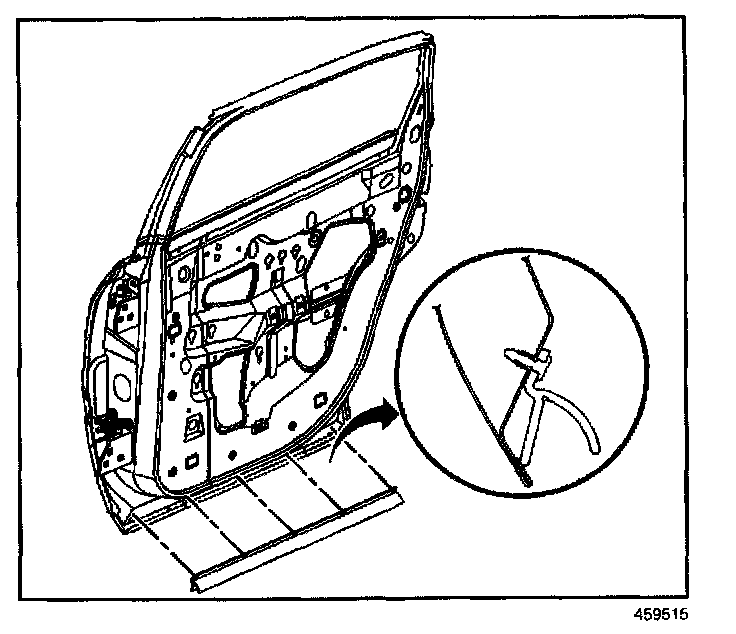

INSTALLATION PROCEDURE




1. Position the door bottom auxiliary weatherstrip to the rear door.
2. Stretch the door bottom auxiliary weatherstrip in order to align the push-in retainers to the holes in the door.
3. Install the push-in retainers to the door bottom auxiliary weatherstrip.
4. Close the rear door.
