Home >> Chevrolet >> 2000 >> Impala V6-3.8L VIN K >> Repair and Diagnosis >> Body and Frame >> Seats >> Diagrams >> Electrical Diagrams >> Heated Seats Schematics >> Heated Seats - 4 Door LH

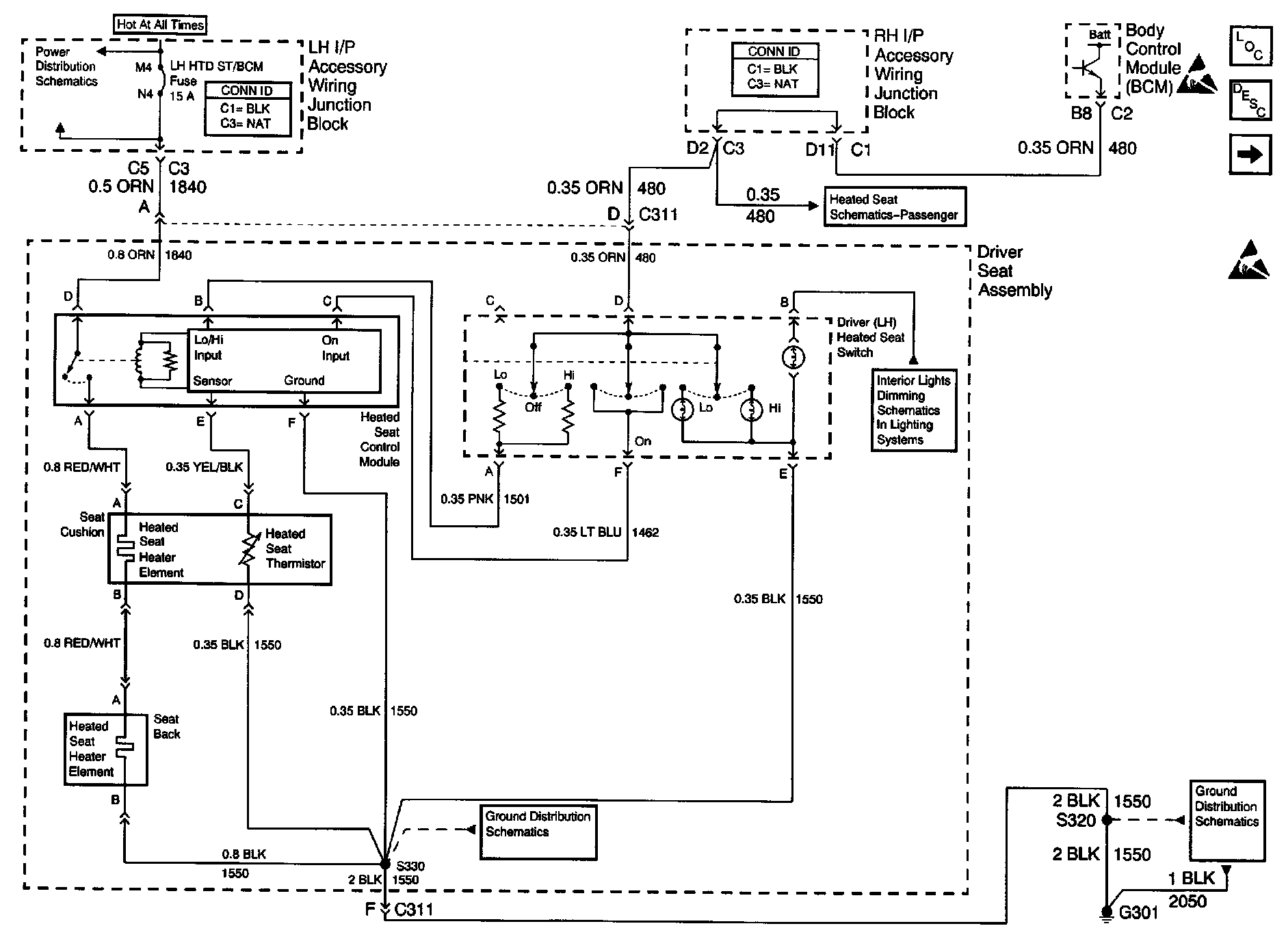

Heated Seats - 4 Door LH

Heated Seats Schematics: Heated Seats - 4 Door LH:
