Sunroof / Moonroof Wiring Harness: Service and Repair

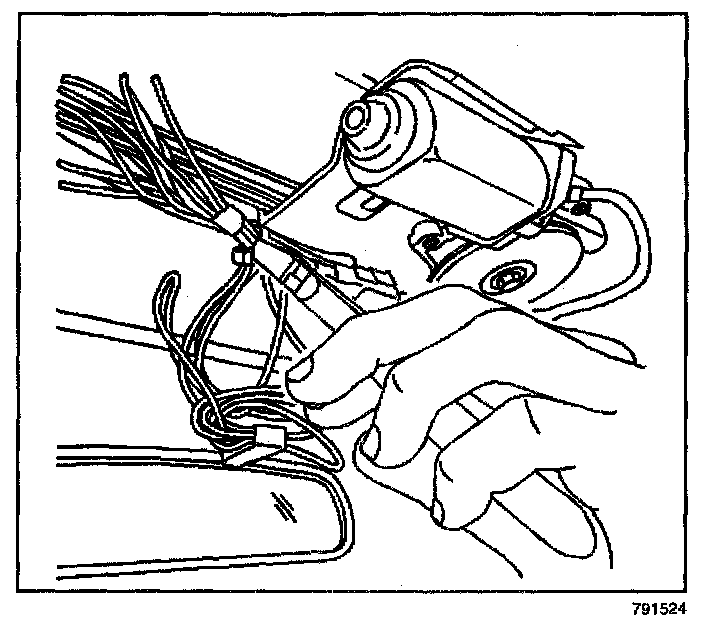

REMOVAL PROCEDUREIMPORTANT: Note the following locations:
^ The position of the wire harness routing
^ The location of the tie-straps that secure the harness to the drive cable tubes and the sunroof express module
1. Position the sunshade in the full forward position.
2. Remove the headliner.
3. Remove the rear shelf.
4. Cut the nylon tie straps on the express module and the drive cable tube.
5. Disconnect the electrical connector from the following components:
^ The sunroof express module
^ The sunroof actuator
^ The Position Encoding Switch
6. Remove the tape holding the wire harness to the module.
7. Remove the wire harness from the sunroof.
INSTALLATION PROCEDURE
1. Position the wire harness to the sunroof.
2. Connect the electrical connectors to the following components:
^ The sunroof express module
^ The sunroof actuator
^ The Position Encoding Switch
3. Install new nylon tie straps to the express module and the drive cable tubes.
4. Install new tape to hold the wire harness to the module.
5. Check for proper operation of the sunroof.
6. Install the rear shelf.
7. Install the headliner.
